Report - RFC2544 Automatic Test

MP1590B Network Performance Tester

Version 9.06.21

2020/11/11 03:35:46

Port List

Port Settings

Throughput

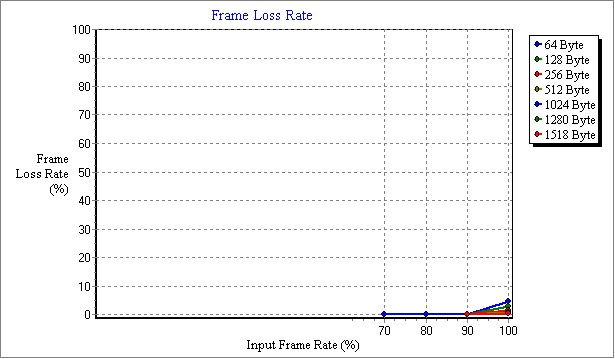

Frame Loss Rate

Port List

Top

Unit1:3:1: MU120122A Gigabit Ethernet
Unit1:3:4: MU120122A Gigabit Ethernet

Port Settings

Top

Unit1:3:1	Unit1:3:4
Ownership: Owner Mode: Normal MAC Address: 00-00-00-00-00-01 IPv4: This Port: IPv4 Address: 172.200.200.2 Netmask: 255.255.255.252 Gateway: 172.200.200.1 ARP Reply: Reply to this port ARP request ICMP Echo (PING) Reply: Reply to this port PING request VLAN: Enabled: OFF This Port VLAN: No., TPID (hex), Priority, VID (dec) 1, 8100, 0, 1 2 3 4 5 6 7 8 9 10 CFI: Reset Protocols: Protocol Filter: IGMP: OFF BGP4: OFF Mapping: Framed MII Properties: Auto Negotiation: On: ON Timeout Enable: OFF Loopback: OFF Flow Control Receive: Multicast Pause Address: OFF Directed Address: OFF Maximum Frame Size: 1518 Preamble: OFF	Ownership: Owner Mode: Normal MAC Address: 00-00-00-00-00-04 IPv4: This Port: IPv4 Address: 172.200.2.2 Netmask: 255.255.255.0 Gateway: 172.200.2.1 ARP Reply: Reply to this port ARP request ICMP Echo (PING) Reply: Reply to this port PING request VLAN: Enabled: OFF This Port VLAN: No., TPID (hex), Priority, VID (dec) 1, 8100, 0, 1 2 3 4 5 6 7 8 9 10 CFI: Reset Protocols: Protocol Filter: IGMP: OFF BGP4: OFF Mapping: Framed MII Properties: Auto Negotiation: ON Capabilities To Be Advertised: 10M bps Half Duplex: ON 10M bps Full Duplex: ON 100M bps Half Duplex: ON 100M bps Full Duplex: ON 1000M bps Half Duplex: ON 1000M bps Full Duplex: ON Timing: Auto Auto MDI/MDI-X: ON Loopback (1000M Full only): OFF Flow Control Receive (Full Duplex only): Multicast Pause Address: OFF Directed Address: OFF Maximum Frame Size: 1518 Preamble: OFF

Unit1:3:1

Unit1:3:4

Ownership: Owner
Mode: Normal
MAC Address: 00-00-00-00-00-01
IPv4:
- This Port:
  - IPv4 Address: 172.200.200.2
  - Netmask: 255.255.255.252
  - Gateway: 172.200.200.1
- ARP Reply: Reply to this port ARP request
- ICMP Echo (PING) Reply: Reply to this port PING request
VLAN:
- Enabled: OFF
- This Port VLAN:
  - No., TPID (hex), Priority, VID (dec)
  - 1, 8100, 0, 1
  - 2
  - 3
  - 4
  - 5
  - 6
  - 7
  - 8
  - 9
  - 10
- CFI: Reset
Protocols:
- Protocol Filter:
  - IGMP: OFF
  - BGP4: OFF
Mapping: Framed
MII Properties:
- Auto Negotiation:
  - On: ON
  - Timeout Enable: OFF
- Loopback: OFF
- Flow Control Receive:
  - Multicast Pause Address: OFF
  - Directed Address: OFF
Maximum Frame Size: 1518
Preamble: OFF

Ownership: Owner
Mode: Normal
MAC Address: 00-00-00-00-00-04
IPv4:
- This Port:
  - IPv4 Address: 172.200.2.2
  - Netmask: 255.255.255.0
  - Gateway: 172.200.2.1
- ARP Reply: Reply to this port ARP request
- ICMP Echo (PING) Reply: Reply to this port PING request
VLAN:
- Enabled: OFF
- This Port VLAN:
  - No., TPID (hex), Priority, VID (dec)
  - 1, 8100, 0, 1
  - 2
  - 3
  - 4
  - 5
  - 6
  - 7
  - 8
  - 9
  - 10
- CFI: Reset
Protocols:
- Protocol Filter:
  - IGMP: OFF
  - BGP4: OFF
Mapping: Framed
MII Properties:
- Auto Negotiation: ON
  - Capabilities To Be Advertised:
    - 10M bps Half Duplex: ON
    - 10M bps Full Duplex: ON
    - 100M bps Half Duplex: ON
    - 100M bps Full Duplex: ON
    - 1000M bps Half Duplex: ON
    - 1000M bps Full Duplex: ON
  - Timing: Auto
  - Auto MDI/MDI-X: ON
- Loopback (1000M Full only): OFF
- Flow Control Receive (Full Duplex only):
  - Multicast Pause Address: OFF
  - Directed Address: OFF
Maximum Frame Size: 1518
Preamble: OFF

Throughput

Top

Test Settings

[Test Method]

Traffic Distribution: One to One

Traffic Orientation: Unidirectional

[Ports]

VLAN Tag A: OFF

VLAN Tag B: OFF

VLAN ID: 1

[Test Frame]

Frame Sizes to Use: RFC2544 Frame Sizes: 64, 128, 256, 512, 1024, 1280, 1518 byte

Protocol: IP

Version of IP: IPv4

Device Type: Store and Forward

[Learning Frame (for Ethernet Modules)]

Learning Mode: Once

Retries: 1

[Throughput]

Duration: 60s

Number of Trials: 1

Burst Size: 1

Initial Rate: 100.00%

Minimum Rate: 0.10%

Maximum Rate: 100.00%

Resolution: 0.50%

Loss Tolerance: 0.0000%

Results (Table)

Frame Size	Average	1
Bit/s
64	632,380,928	632,380,928
128	817,296,384	817,296,384
256	867,246,080	867,246,080
512	943,157,248	943,157,248
1,024	975,937,536	975,937,536
1,280	979,691,520	979,691,520
1,518	982,060,992	982,060,992

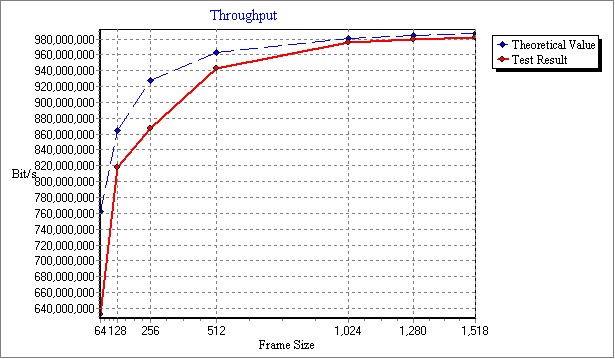

Results (Chart)
