Report - RFC2544 Automatic Test

MP1590B Network Performance Tester
Version 9.06.23
2022/02/08 01:29:03
Port List Port Settings Throughput Latency Frame Loss Rate Back-to-back Frames System Recovery

Port List

Top

Port Settings

Top
Unit1:3:1Unit1:3:4
  • Ownership: Owner
  • Mode: Normal
  • MAC Address: 00-00-00-00-00-01
  • IPv4:
    • This Port:
      • IPv4 Address: 192.168.1.1
      • Netmask: 255.255.255.0
      • Gateway: 192.168.1.100
    • ARP Reply: Reply to this port ARP request
    • ICMP Echo (PING) Reply: Reply to this port PING request
  • VLAN:
    • Enabled: OFF
    • This Port VLAN:
      • No., TPID (hex), Priority, VID (dec)
      • 1, 8100, 0, 1
      • 2
      • 3
      • 4
      • 5
      • 6
      • 7
      • 8
      • 9
      • 10
    • CFI: Reset
  • Protocols:
    • Protocol Filter:
      • IGMP: OFF
      • BGP4: OFF
  • Mapping: Framed
  • MII Properties:
    • Auto Negotiation:
      • On: ON
      • Timeout Enable: OFF
    • Loopback: OFF
    • Flow Control Receive:
      • Multicast Pause Address: OFF
      • Directed Address: OFF
  • Maximum Frame Size: 1518
  • Preamble: OFF
  • Ownership: Owner
  • Mode: Normal
  • MAC Address: 00-00-00-00-00-00
  • IPv4:
    • This Port:
      • IPv4 Address: 192.168.1.2
      • Netmask: 255.255.255.0
      • Gateway: 192.168.1.100
    • ARP Reply: Not send
    • ICMP Echo (PING) Reply: Not send
  • VLAN:
    • Enabled: OFF
    • This Port VLAN:
      • No., TPID (hex), Priority, VID (dec)
      • 1, 8100, 0, 1
      • 2
      • 3
      • 4
      • 5
      • 6
      • 7
      • 8
      • 9
      • 10
    • CFI: Reset
  • Protocols:
    • Protocol Filter:
      • IGMP: OFF
      • BGP4: OFF
  • Mapping: Framed
  • MII Properties:
    • Auto Negotiation: ON
      • Capabilities To Be Advertised:
        • 10M bps Half Duplex: ON
        • 10M bps Full Duplex: ON
        • 100M bps Half Duplex: ON
        • 100M bps Full Duplex: ON
        • 1000M bps Half Duplex: ON
        • 1000M bps Full Duplex: ON
      • Timing: Auto
      • Auto MDI/MDI-X: ON
    • Loopback (1000M Full only): OFF
    • Flow Control Receive (Full Duplex only):
      • Multicast Pause Address: OFF
      • Directed Address: OFF
  • Maximum Frame Size: 1518
  • Preamble: OFF

Throughput

Top

Test Settings

[Test Method]
Traffic Distribution: One to One
Traffic Orientation: Unidirectional
[Ports]
VLAN Tag A: OFF
VLAN Tag B: OFF
VLAN ID: 1
[Test Frame]
Frame Sizes to Use: RFC2544 Frame Sizes: 64, 128, 256, 512, 1024, 1280, 1518 byte
Protocol: MAC
Version of IP: IPv4
Device Type: Store and Forward
[Learning Frame (for Ethernet Modules)]
Learning Mode: Once
Retries: 1
[Throughput]
Duration: 60s
Number of Trials: 1
Burst Size: 1
Initial Rate: 100.00%
Minimum Rate: 0.10%
Maximum Rate: 100.00%
Resolution: 0.50%
Loss Tolerance: 0.0000%

Results (Table)

Frame/s
Frame Size Average 1
64 89,285 89,285
128 88,682 88,682
256 86,050 86,050
512 85,761 85,761
1,024 80,818 80,818
1,280 77,884 77,884
1,518 15,035 15,035

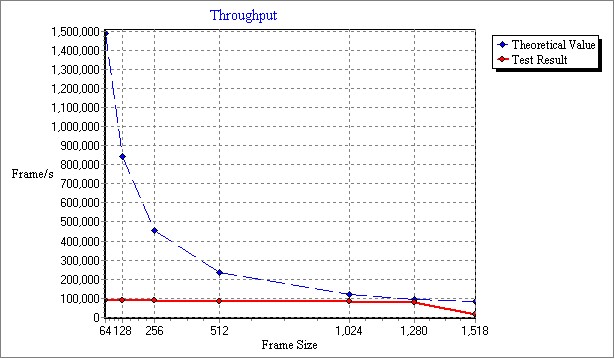

Results (Chart)


Latency

Top

Test Settings

[Test Method]
Traffic Distribution: One to One
Traffic Orientation: Unidirectional
[Ports]
VLAN Tag A: OFF
VLAN Tag B: OFF
VLAN ID: 1
[Test Frame]
Frame Sizes to Use: RFC2544 Frame Sizes: 64, 128, 256, 512, 1024, 1280, 1518 byte
Protocol: MAC
Version of IP: IPv4
Device Type: Store and Forward
[Learning Frame (for Ethernet Modules)]
Learning Mode: Once
Retries: 1
[Latency]
Duration: 120s
Number of Trials: 1
Burst Size: 1
Frame Rate: Result of Throughput Rate

Results (Table)

Latency (s)
Frame Size Average 1
64 0.023032514 0.023032514
128 0.023088434 0.023088434
256 0.000098614 0.000098614
512 0.000102362 0.000102362
1,024 0.000212802 0.000212802
1,280 0.000368650 0.000368650
1,518 0.000579850 0.000579850

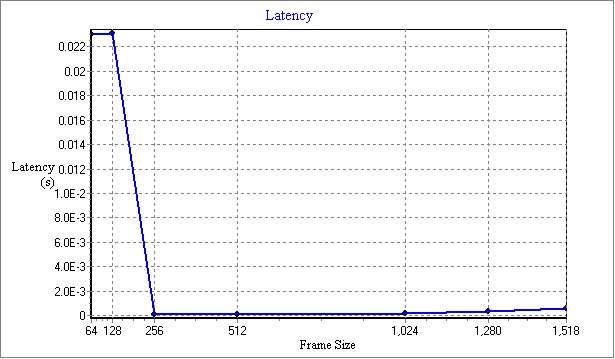

Results (Chart)


Frame Loss Rate

Top

Test Settings

[Test Method]
Traffic Distribution: One to One
Traffic Orientation: Unidirectional
[Ports]
VLAN Tag A: OFF
VLAN Tag B: OFF
VLAN ID: 1
[Test Frame]
Frame Sizes to Use: RFC2544 Frame Sizes: 64, 128, 256, 512, 1024, 1280, 1518 byte
Protocol: MAC
Version of IP: IPv4
Device Type: Store and Forward
[Learning Frame (for Ethernet Modules)]
Learning Mode: Once
Retries: 1
[Frame Loss Rate]
Duration: 60s
Number of Trials: 1
Burst Size: 1
Initial Rate: 100%
Step Rate: 10%

Results (Table)

Frame Loss Rate (%)
Frame Size Frame Rate Average 1
64 100.00% 94.22 94.22
64 90.00% 93.59 93.59
64 80.00% 92.79 92.79
64 70.00% 91.69 91.69
64 60.00% 89.93 89.93
64 50.00% 87.90 87.90
64 40.00% 84.93 84.93
64 30.00% 79.86 79.86
64 20.00% 69.73 69.73
64 10.00% 39.57 39.57
128 100.00% 89.37 89.37
128 90.00% 88.24 88.24
128 80.00% 86.76 86.76
128 70.00% 84.85 84.85
128 60.00% 82.33 82.33
128 50.00% 78.76 78.76
128 40.00% 73.46 73.46
128 30.00% 64.62 64.62
128 20.00% 46.93 46.93
128 10.00% 0.00 0.00
256 100.00% 80.41 80.41
256 90.00% 78.25 78.25
256 80.00% 75.56 75.56
256 70.00% 72.03 72.03
256 60.00% 67.29 67.29
256 50.00% 60.79 60.79
256 40.00% 51.09 51.09
256 30.00% 34.64 34.64
256 20.00% 1.84 1.84
256 10.00% 0.00 0.00
512 100.00% 62.78 62.78
512 90.00% 58.68 58.68
512 80.00% 53.39 53.39
512 70.00% 46.78 46.78
512 60.00% 38.20 38.20
512 50.00% 25.72 25.72
512 40.00% 6.74 6.74
512 30.00% 0.00 0.00
512 20.00% - -
512 10.00% - -
1,024 100.00% 32.16 32.16
1,024 90.00% 24.67 24.67
1,024 80.00% 15.40 15.40
1,024 70.00% 3.29 3.29
1,024 60.00% 0.00 0.00
1,024 50.00% - -
1,024 40.00% - -
1,024 30.00% - -
1,024 20.00% - -
1,024 10.00% - -
1,280 100.00% 18.57 18.57
1,280 90.00% 9.33 9.33
1,280 80.00% 0.00 0.00
1,280 70.00% - -
1,280 60.00% - -
1,280 50.00% - -
1,280 40.00% - -
1,280 30.00% - -
1,280 20.00% - -
1,280 10.00% - -
1,518 100.00% 81.18 81.18
1,518 90.00% 79.09 79.09
1,518 80.00% 76.44 76.44
1,518 70.00% 73.08 73.08
1,518 60.00% 68.59 68.59
1,518 50.00% 62.36 62.36
1,518 40.00% 52.85 52.85
1,518 30.00% 37.14 37.14
1,518 20.00% 5.54 5.54
1,518 10.00% 0.00 0.00

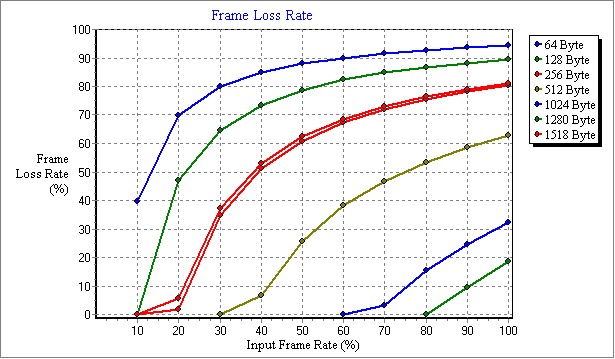

Results (Chart)


Back-to-back Frames

Top

Test Settings

[Test Method]
Traffic Distribution: One to One
Traffic Orientation: Unidirectional
[Ports]
VLAN Tag A: OFF
VLAN Tag B: OFF
VLAN ID: 1
[Test Frame]
Frame Sizes to Use: RFC2544 Frame Sizes: 64, 128, 256, 512, 1024, 1280, 1518 byte
Protocol: MAC
Version of IP: IPv4
Device Type: Store and Forward
[Learning Frame (for Ethernet Modules)]
Learning Mode: Once
Retries: 1
[Back-to-back Frames]
Duration: 2s
Number of Trials: 50
Burst Size: 1
Frame Rate: 100%
Loss Tolerance: 0.0000%

Results (Table)

Number of Frames
Frame Size Average 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50
64 2,095 2,096 2,096 2,096 2,096 2,096 2,096 2,096 2,096 2,097 2,096 2,096 2,096 2,096 2,096 2,096 2,096 2,092 2,096 2,096 2,096 2,096 2,096 2,096 2,096 2,096 2,096 2,096 2,096 2,096 2,097 2,096 2,096 2,096 2,096 2,096 2,096 2,096 2,096 2,096 2,099 2,096 2,096 2,096 2,096 2,097 2,096 2,096 2,096 2,096 2,087
128 2,203 2,204 2,202 2,204 2,201 2,204 2,202 2,204 2,204 2,199 2,204 2,204 2,202 2,204 2,204 2,203 2,204 2,201 2,201 2,203 2,203 2,204 2,204 2,204 2,204 2,201 2,201 2,202 2,204 2,204 2,204 2,204 2,204 2,204 2,202 2,204 2,197 2,204 2,204 2,204 2,204 2,204 2,204 2,203 2,204 2,202 2,204 2,203 2,204 2,204 2,204
256 2,431 2,432 2,432 2,432 2,430 2,432 2,432 2,427 2,432 2,432 2,432 2,432 2,432 2,432 2,422 2,432 2,432 2,432 2,432 2,432 2,432 2,430 2,432 2,432 2,432 2,422 2,432 2,430 2,432 2,432 2,432 2,432 2,432 2,432 2,432 2,431 2,431 2,431 2,432 2,432 2,432 2,432 2,432 2,432 2,427 2,424 2,432 2,432 2,429 2,432 2,432
512 3,057 3,056 3,050 3,046 3,055 3,068 3,052 3,058 3,060 3,054 3,054 3,056 3,052 3,046 3,056 3,060 3,056 3,060 3,068 3,045 3,066 3,068 3,068 3,053 3,056 3,056 3,061 3,056 3,060 3,049 3,054 3,060 3,068 3,048 3,050 3,060 3,056 3,068 3,046 3,056 3,053 3,064 3,051 3,055 3,055 3,065 3,068 3,068 3,068 3,056 3,068
1,024 5,737 5,727 5,786 5,786 5,764 5,757 5,734 5,747 5,731 5,742 5,726 5,744 5,733 5,741 5,750 5,698 5,611 5,727 5,786 5,720 5,745 5,732 5,743 5,743 5,712 5,698 5,755 5,757 5,786 5,749 5,742 5,735 5,757 5,768 5,744 5,669 5,751 5,734 5,712 5,712 5,727 5,709 5,757 5,738 5,757 5,723 5,727 5,735 5,757 5,734 5,747
1,280 10,630 9,735 9,717 9,693 9,668 9,797 9,741 9,767 9,765 9,573 9,634 9,630 9,624 9,595 9,637 9,646 11,108 11,112 10,890 11,026 11,076 11,074 10,831 11,225 11,127 11,113 10,984 11,007 11,070 10,702 11,290 11,055 11,055 10,608 11,064 11,220 10,890 10,888 11,055 10,890 10,890 11,218 11,114 11,102 11,129 11,173 10,907 11,173 11,267 10,890 11,055
1,518 2,413 2,412 2,414 2,414 2,412 2,413 2,414 2,414 2,413 2,414 2,415 2,413 2,416 2,416 2,411 2,416 2,415 2,414 2,417 2,414 2,411 2,413 2,411 2,416 2,411 2,413 2,415 2,415 2,413 2,412 2,414 2,411 2,414 2,413 2,414 2,413 2,414 2,411 2,415 2,416 2,415 2,413 2,414 2,416 2,412 2,416 2,413 2,416 2,413 2,412 2,411

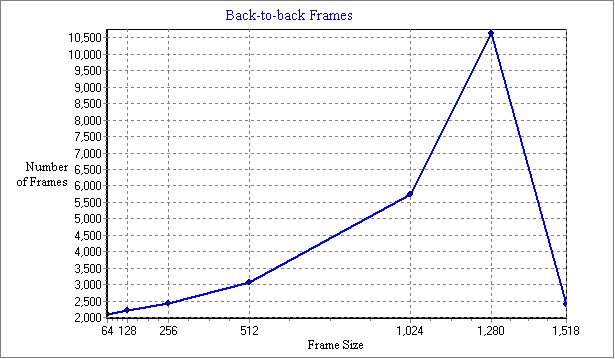

Results (Chart)


System Recovery

Top

Test Settings

[Test Method]
Traffic Distribution: One to One
Traffic Orientation: Unidirectional
[Ports]
VLAN Tag A: OFF
VLAN Tag B: OFF
VLAN ID: 1
[Test Frame]
Frame Sizes to Use: RFC2544 Frame Sizes: 64, 128, 256, 512, 1024, 1280, 1518 byte
Protocol: MAC
Version of IP: IPv4
Device Type: Store and Forward
[Learning Frame (for Ethernet Modules)]
Learning Mode: Once
Retries: 1
[System Recovery]
Duration: 60s
Number of Trials: 1
Burst Size: 1
Threshold Time: 1s
Overload Rate: 110% of Throughput Rate
Moderate Rate: 50.00% of Overload Rate

Results (Table)

Time (s)
Frame Size Average 1
64 0.022537 0.022537
128 0.021455 0.021455
256 0.021598 0.021598
512 0.021685 0.021685
1,024 0.022793 0.022793
1,280 0.024884 0.024884
1,518 0.128824 0.128824

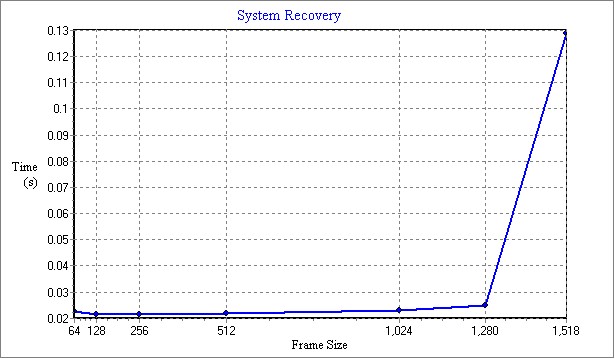

Results (Chart)
