Report - RFC2544 Automatic Test

MP1590B Network Performance Tester
Version 9.06.23
2022/02/05 04:34:00
Port List Port Settings Throughput Latency Frame Loss Rate Back-to-back Frames System Recovery

Port List

Top

Port Settings

Top
Unit1:3:1Unit1:3:4
  • Ownership: Owner
  • Mode: Normal
  • MAC Address: 00-00-00-00-00-01
  • IPv4:
    • This Port:
      • IPv4 Address: 192.168.1.1
      • Netmask: 255.255.255.0
      • Gateway: 192.168.1.100
    • ARP Reply: Reply to this port ARP request
    • ICMP Echo (PING) Reply: Reply to this port PING request
  • VLAN:
    • Enabled: OFF
    • This Port VLAN:
      • No., TPID (hex), Priority, VID (dec)
      • 1, 8100, 0, 1
      • 2
      • 3
      • 4
      • 5
      • 6
      • 7
      • 8
      • 9
      • 10
    • CFI: Reset
  • Protocols:
    • Protocol Filter:
      • IGMP: OFF
      • BGP4: OFF
  • Mapping: Framed
  • MII Properties:
    • Auto Negotiation:
      • On: ON
      • Timeout Enable: OFF
    • Loopback: OFF
    • Flow Control Receive:
      • Multicast Pause Address: OFF
      • Directed Address: OFF
  • Maximum Frame Size: 1518
  • Preamble: OFF
  • Ownership: Owner
  • Mode: Normal
  • MAC Address: 00-00-00-00-00-00
  • IPv4:
    • This Port:
      • IPv4 Address: 192.168.1.2
      • Netmask: 255.255.255.0
      • Gateway: 192.168.1.100
    • ARP Reply: Not send
    • ICMP Echo (PING) Reply: Not send
  • VLAN:
    • Enabled: OFF
    • This Port VLAN:
      • No., TPID (hex), Priority, VID (dec)
      • 1, 8100, 0, 1
      • 2
      • 3
      • 4
      • 5
      • 6
      • 7
      • 8
      • 9
      • 10
    • CFI: Reset
  • Protocols:
    • Protocol Filter:
      • IGMP: OFF
      • BGP4: OFF
  • Mapping: Framed
  • MII Properties:
    • Auto Negotiation: ON
      • Capabilities To Be Advertised:
        • 10M bps Half Duplex: ON
        • 10M bps Full Duplex: ON
        • 100M bps Half Duplex: ON
        • 100M bps Full Duplex: ON
        • 1000M bps Half Duplex: ON
        • 1000M bps Full Duplex: ON
      • Timing: Auto
      • Auto MDI/MDI-X: ON
    • Loopback (1000M Full only): OFF
    • Flow Control Receive (Full Duplex only):
      • Multicast Pause Address: OFF
      • Directed Address: OFF
  • Maximum Frame Size: 1518
  • Preamble: OFF

Throughput

Top

Test Settings

[Test Method]
Traffic Distribution: One to One
Traffic Orientation: Unidirectional
[Ports]
VLAN Tag A: OFF
VLAN Tag B: OFF
VLAN ID: 1
[Test Frame]
Frame Sizes to Use: RFC2544 Frame Sizes: 64, 128, 256, 512, 1024, 1280, 1518 byte
Protocol: MAC
Version of IP: IPv4
Device Type: Store and Forward
[Learning Frame (for Ethernet Modules)]
Learning Mode: Once
Retries: 1
[Throughput]
Duration: 60s
Number of Trials: 1
Burst Size: 1
Initial Rate: 100.00%
Minimum Rate: 0.10%
Maximum Rate: 100.00%
Resolution: 0.50%
Loss Tolerance: 0.0000%

Results (Table)

Frame/s
Frame Size Average 1
64 200,892 200,892
128 198,479 198,479
256 192,481 192,481
512 183,270 183,270
1,024 113,146 113,146
1,280 91,826 91,826
1,518 28,852 28,852

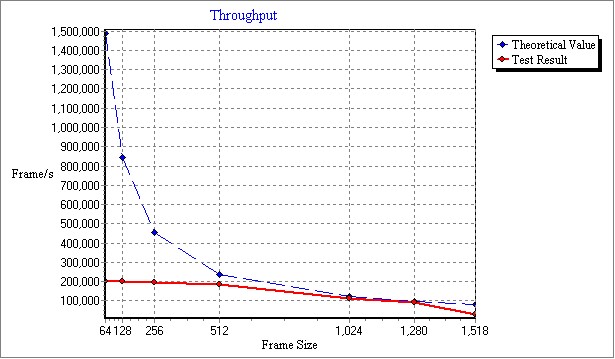

Results (Chart)


Latency

Top

Test Settings

[Test Method]
Traffic Distribution: One to One
Traffic Orientation: Unidirectional
[Ports]
VLAN Tag A: OFF
VLAN Tag B: OFF
VLAN ID: 1
[Test Frame]
Frame Sizes to Use: RFC2544 Frame Sizes: 64, 128, 256, 512, 1024, 1280, 1518 byte
Protocol: MAC
Version of IP: IPv4
Device Type: Store and Forward
[Learning Frame (for Ethernet Modules)]
Learning Mode: Once
Retries: 1
[Latency]
Duration: 120s
Number of Trials: 1
Burst Size: 1
Frame Rate: Result of Throughput Rate

Results (Table)

Latency (s)
Frame Size Average 1
64 0.000020450 0.000020450
128 0.000019934 0.000019934
256 0.000095466 0.000095466
512 0.010792414 0.010792414
1,024 0.000128402 0.000128402
1,280 0.000134302 0.000134302
1,518 0.000131334 0.000131334

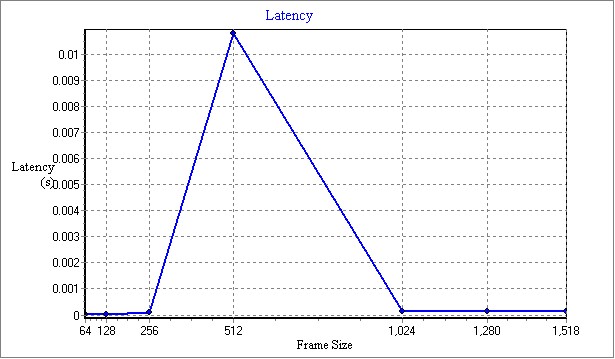

Results (Chart)


Frame Loss Rate

Top

Test Settings

[Test Method]
Traffic Distribution: One to One
Traffic Orientation: Unidirectional
[Ports]
VLAN Tag A: OFF
VLAN Tag B: OFF
VLAN ID: 1
[Test Frame]
Frame Sizes to Use: RFC2544 Frame Sizes: 64, 128, 256, 512, 1024, 1280, 1518 byte
Protocol: MAC
Version of IP: IPv4
Device Type: Store and Forward
[Learning Frame (for Ethernet Modules)]
Learning Mode: Once
Retries: 1
[Frame Loss Rate]
Duration: 60s
Number of Trials: 1
Burst Size: 1
Initial Rate: 100%
Step Rate: 10%

Results (Table)

Frame Loss Rate (%)
Frame Size Frame Rate Average 1
64 100.00% 86.09 86.09
64 90.00% 84.53 84.53
64 80.00% 82.64 82.64
64 70.00% 80.22 80.22
64 60.00% 77.40 77.40
64 50.00% 72.89 72.89
64 40.00% 66.10 66.10
64 30.00% 54.78 54.78
64 20.00% 32.19 32.19
64 10.00% 0.00 0.00
128 100.00% 76.18 76.18
128 90.00% 73.47 73.47
128 80.00% 70.14 70.14
128 70.00% 65.84 65.84
128 60.00% 60.29 60.29
128 50.00% 52.24 52.24
128 40.00% 40.21 40.21
128 30.00% 20.50 20.50
128 20.00% 0.00 0.00
128 10.00% - -
256 100.00% 56.98 56.98
256 90.00% 52.48 52.48
256 80.00% 46.33 46.33
256 70.00% 38.71 38.71
256 60.00% 28.47 28.47
256 50.00% 14.26 14.26
256 40.00% 0.00 0.00
256 30.00% - -
256 20.00% - -
256 10.00% - -
512 100.00% 21.80 21.80
512 90.00% 13.13 13.13
512 80.00% 2.39 2.39
512 70.00% 0.00 0.00
512 60.00% - -
512 50.00% - -
512 40.00% - -
512 30.00% - -
512 20.00% - -
512 10.00% - -
1,024 100.00% 5.06 5.06
1,024 90.00% 0.00 0.00
1,024 80.00% - -
1,024 70.00% - -
1,024 60.00% - -
1,024 50.00% - -
1,024 40.00% - -
1,024 30.00% - -
1,024 20.00% - -
1,024 10.00% - -
1,280 100.00% 4.10 4.10
1,280 90.00% 0.00 0.00
1,280 80.00% - -
1,280 70.00% - -
1,280 60.00% - -
1,280 50.00% - -
1,280 40.00% - -
1,280 30.00% - -
1,280 20.00% - -
1,280 10.00% - -
1,518 100.00% 99.73 99.73
1,518 90.00% 99.71 99.71
1,518 80.00% 99.77 99.77
1,518 70.00% 99.64 99.64
1,518 60.00% 99.69 99.69
1,518 50.00% 99.65 99.65
1,518 40.00% 99.34 99.34
1,518 30.00% 0.00 0.00
1,518 20.00% - -
1,518 10.00% - -

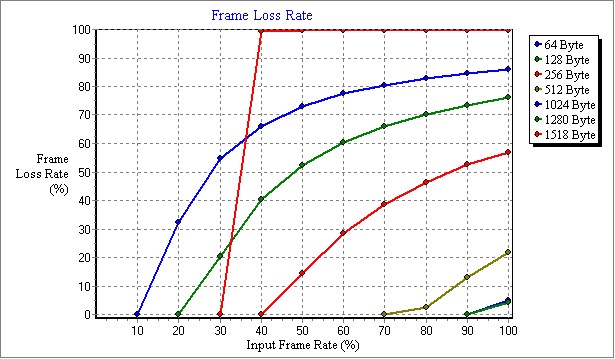

Results (Chart)


Back-to-back Frames

Top

Test Settings

[Test Method]
Traffic Distribution: One to One
Traffic Orientation: Unidirectional
[Ports]
VLAN Tag A: OFF
VLAN Tag B: OFF
VLAN ID: 1
[Test Frame]
Frame Sizes to Use: RFC2544 Frame Sizes: 64, 128, 256, 512, 1024, 1280, 1518 byte
Protocol: MAC
Version of IP: IPv4
Device Type: Store and Forward
[Learning Frame (for Ethernet Modules)]
Learning Mode: Once
Retries: 1
[Back-to-back Frames]
Duration: 2s
Number of Trials: 50
Burst Size: 1
Frame Rate: 100%
Loss Tolerance: 0.0000%

Results (Table)

Number of Frames
Frame Size Average 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50
64 2,285 2,288 2,288 2,288 2,288 2,276 2,288 2,284 2,288 2,288 2,288 2,288 2,288 2,288 2,288 2,288 2,279 2,287 2,288 2,288 2,284 2,288 2,288 2,288 2,285 2,284 2,284 2,279 2,288 2,285 2,288 2,288 2,288 2,279 2,288 2,280 2,279 2,288 2,279 2,279 2,288 2,288 2,288 2,288 2,288 2,288 2,285 2,279 2,288 2,288 2,287
128 2,609 2,612 2,600 2,611 2,576 2,612 2,612 2,603 2,618 2,612 2,601 2,615 2,612 2,608 2,612 2,607 2,612 2,612 2,615 2,613 2,613 2,621 2,613 2,612 2,612 2,615 2,601 2,604 2,612 2,615 2,610 2,607 2,608 2,612 2,612 2,592 2,612 2,610 2,599 2,612 2,612 2,612 2,615 2,613 2,612 2,613 2,609 2,610 2,613 2,602 2,621
256 3,554 3,560 3,546 3,557 3,563 3,553 3,550 3,557 3,537 3,593 3,556 3,553 3,582 3,559 3,544 3,579 3,551 3,547 3,537 3,549 3,542 3,555 3,549 3,558 3,538 3,546 3,537 3,565 3,549 3,550 3,548 3,546 3,545 3,558 3,559 3,564 3,579 3,555 3,550 3,550 3,551 3,549 3,564 3,551 3,560 3,557 3,547 3,565 3,557 3,558 3,565
512 11,463 11,376 11,671 11,528 11,568 11,470 11,239 11,215 11,012 11,484 11,181 11,703 11,485 11,522 11,471 11,564 11,480 11,353 11,578 11,410 11,934 11,411 11,931 11,701 11,701 11,357 11,931 11,354 11,004 11,699 11,486 11,529 11,639 11,112 11,486 11,616 11,464 11,496 11,500 11,348 11,241 11,126 11,472 11,471 11,701 11,168 11,359 11,443 11,240 11,722 11,243
1,024 35,210 35,213 35,213 35,205 35,159 35,223 35,223 35,220 35,216 35,217 35,223 35,203 35,223 35,214 35,219 35,193 35,212 35,203 35,193 35,207 35,218 35,223 35,223 35,214 35,193 35,212 35,214 35,226 35,193 35,215 35,221 35,205 35,212 35,193 35,207 35,207 35,220 35,217 35,205 35,217 35,207 35,223 35,202 35,207 35,193 35,226 35,217 35,193 35,219 35,217 35,214
1,280 43,439 43,443 43,427 43,443 43,445 43,438 43,448 43,442 43,442 43,448 43,445 43,442 43,427 43,446 43,438 43,437 43,436 43,438 43,443 43,443 43,448 43,446 43,443 43,443 43,444 43,432 43,436 43,443 43,447 43,443 43,443 43,427 43,441 43,436 43,443 43,443 43,449 43,445 43,442 43,436 43,427 43,435 43,435 43,380 43,436 43,443 43,438 43,436 43,442 43,445 43,438
1,518 3,605 3,609 3,611 3,490 3,620 3,625 3,615 3,613 3,619 3,630 3,637 3,252 3,625 3,611 3,604 3,613 3,490 3,645 3,641 3,629 3,637 3,632 3,627 3,635 3,620 3,609 3,624 3,632 3,629 3,496 3,632 3,630 3,634 3,627 3,627 3,490 3,619 3,630 3,634 3,627 3,630 3,629 3,632 3,620 3,610 3,630 3,614 3,609 3,620 3,609 3,611

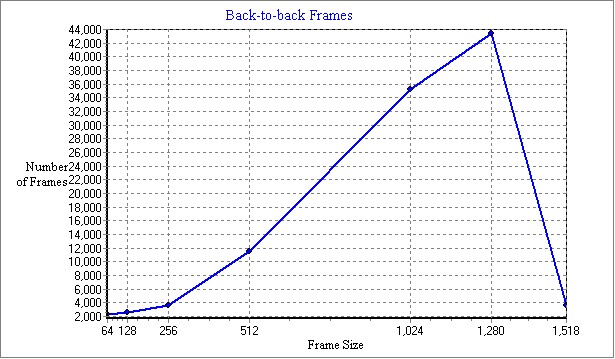

Results (Chart)


System Recovery

Top

Test Settings

[Test Method]
Traffic Distribution: One to One
Traffic Orientation: Unidirectional
[Ports]
VLAN Tag A: OFF
VLAN Tag B: OFF
VLAN ID: 1
[Test Frame]
Frame Sizes to Use: RFC2544 Frame Sizes: 64, 128, 256, 512, 1024, 1280, 1518 byte
Protocol: MAC
Version of IP: IPv4
Device Type: Store and Forward
[Learning Frame (for Ethernet Modules)]
Learning Mode: Once
Retries: 1
[System Recovery]
Duration: 60s
Number of Trials: 1
Burst Size: 1
Threshold Time: 1s
Overload Rate: 110% of Throughput Rate
Moderate Rate: 50.00% of Overload Rate

Results (Table)

Time (s)
Frame Size Average 1
64 0.009532 0.009532
128 0.009625 0.009625
256 0.010116 0.010116
512 0.029346 0.029346
1,024 0.018188 0.018188
1,280 0.019568 0.019568
1,518 - -

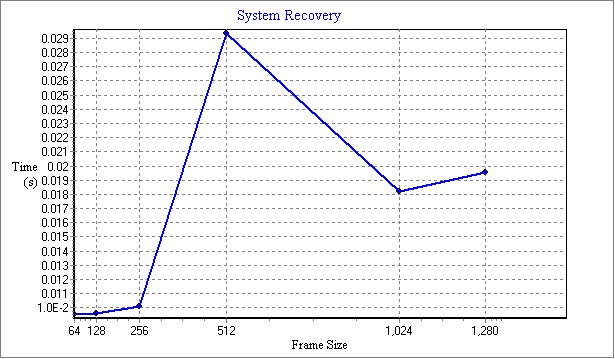

Results (Chart)
