Report - RFC2544 Automatic Test

MP1590B Network Performance Tester
Version 9.06.21
2020/09/27 02:08:16
Port List Port Settings Throughput Latency Frame Loss Rate

Port List

Top

Port Settings

Top
Unit1:3:1Unit1:3:4
  • Ownership: Owner
  • Mode: Normal
  • MAC Address: 00-00-00-00-00-01
  • IPv4:
    • This Port:
      • IPv4 Address: 192.168.1.1
      • Netmask: 255.255.255.0
      • Gateway: 0.0.0.0
    • ARP Reply: Reply to this port ARP request
    • ICMP Echo (PING) Reply: Reply to this port PING request
  • VLAN:
    • Enabled: OFF
    • This Port VLAN:
      • No., TPID (hex), Priority, VID (dec)
      • 1, 8100, 0, 1
      • 2
      • 3
      • 4
      • 5
      • 6
      • 7
      • 8
      • 9
      • 10
    • CFI: Reset
  • Protocols:
    • Protocol Filter:
      • IGMP: OFF
      • BGP4: OFF
  • Mapping: Framed
  • MII Properties:
    • Auto Negotiation:
      • On: ON
      • Timeout Enable: OFF
    • Loopback: OFF
    • Flow Control Receive:
      • Multicast Pause Address: OFF
      • Directed Address: OFF
  • Maximum Frame Size: 1518
  • Preamble: OFF
  • Ownership: Owner
  • Mode: Normal
  • MAC Address: 00-00-00-00-00-04
  • IPv4:
    • This Port:
      • IPv4 Address: 192.168.1.4
      • Netmask: 255.255.255.0
      • Gateway: 0.0.0.0
    • ARP Reply: Reply to this port ARP request
    • ICMP Echo (PING) Reply: Reply to this port PING request
  • VLAN:
    • Enabled: OFF
    • This Port VLAN:
      • No., TPID (hex), Priority, VID (dec)
      • 1, 8100, 0, 1
      • 2
      • 3
      • 4
      • 5
      • 6
      • 7
      • 8
      • 9
      • 10
    • CFI: Reset
  • Protocols:
    • Protocol Filter:
      • IGMP: OFF
      • BGP4: OFF
  • Mapping: Framed
  • MII Properties:
    • Auto Negotiation: ON
      • Capabilities To Be Advertised:
        • 10M bps Half Duplex: ON
        • 10M bps Full Duplex: ON
        • 100M bps Half Duplex: ON
        • 100M bps Full Duplex: ON
        • 1000M bps Half Duplex: ON
        • 1000M bps Full Duplex: ON
      • Timing: Auto
      • Auto MDI/MDI-X: ON
    • Loopback (1000M Full only): OFF
    • Flow Control Receive (Full Duplex only):
      • Multicast Pause Address: OFF
      • Directed Address: OFF
  • Maximum Frame Size: 1518
  • Preamble: OFF

Throughput

Top

Test Settings

[Test Method]
Traffic Distribution: One to One
Traffic Orientation: Unidirectional
[Ports]
VLAN Tag A: OFF
VLAN Tag B: OFF
VLAN ID: 1
[Test Frame]
Frame Sizes to Use: RFC2544 Frame Sizes: 64, 128, 256, 512, 1024, 1280, 1518 byte
Protocol: MAC
Version of IP: IPv4
Device Type: Store and Forward
[Learning Frame (for Ethernet Modules)]
Learning Mode: Once
Retries: 1
[Throughput]
Duration: 60s
Number of Trials: 1
Burst Size: 1
Initial Rate: 100.00%
Minimum Rate: 0.10%
Maximum Rate: 100.00%
Resolution: 0.50%
Loss Tolerance: 0.0000%

Results (Table)

Bit/s
Frame Size Average 1
64 41,904,640 41,904,640
128 82,161,664 82,161,664
256 166,955,008 166,955,008
512 322,404,352 322,404,352
1,024 598,310,912 598,310,912
1,280 723,691,520 723,691,520
1,518 93,763,824 93,763,824

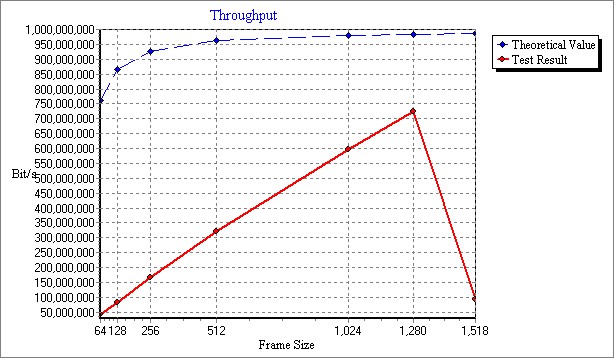

Results (Chart)


Latency

Top

Test Settings

[Test Method]
Traffic Distribution: One to One
Traffic Orientation: Unidirectional
[Ports]
VLAN Tag A: OFF
VLAN Tag B: OFF
VLAN ID: 1
[Test Frame]
Frame Sizes to Use: RFC2544 Frame Sizes: 64, 128, 256, 512, 1024, 1280, 1518 byte
Protocol: MAC
Version of IP: IPv4
Device Type: Store and Forward
[Learning Frame (for Ethernet Modules)]
Learning Mode: Once
Retries: 1
[Latency]
Duration: 120s
Number of Trials: 1
Burst Size: 1
Frame Rate: Result of Throughput Rate

Results (Table)

Latency (s)
Frame Size Average 1
64 0.000029118 0.000029118
128 0.000038414 0.000038414
256 0.000167050 0.000167050
512 0.000094186 0.000094186
1,024 0.000149834 0.000149834
1,280 0.000189682 0.000189682
1,518 0.000323198 0.000323198

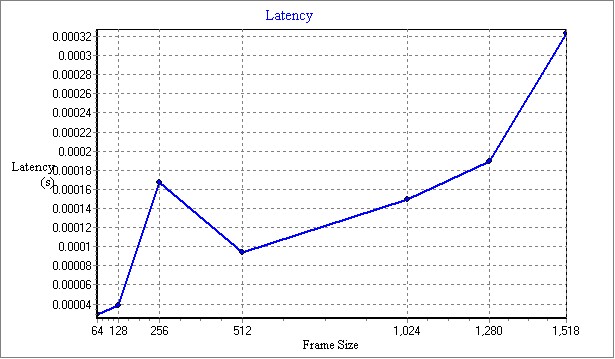

Results (Chart)


Frame Loss Rate

Top

Test Settings

[Test Method]
Traffic Distribution: One to One
Traffic Orientation: Unidirectional
[Ports]
VLAN Tag A: OFF
VLAN Tag B: OFF
VLAN ID: 1
[Test Frame]
Frame Sizes to Use: RFC2544 Frame Sizes: 64, 128, 256, 512, 1024, 1280, 1518 byte
Protocol: MAC
Version of IP: IPv4
Device Type: Store and Forward
[Learning Frame (for Ethernet Modules)]
Learning Mode: Once
Retries: 1
[Frame Loss Rate]
Duration: 60s
Number of Trials: 1
Burst Size: 1
Initial Rate: 100%
Step Rate: 10%

Results (Table)

Frame Loss Rate (%)
Frame Size Frame Rate Average 1
64 100.00% 94.23 94.23
64 90.00% 93.62 93.62
64 80.00% 92.78 92.78
64 70.00% 91.79 91.79
64 60.00% 90.51 90.51
64 50.00% 88.61 88.61
64 40.00% 85.79 85.79
64 30.00% 81.12 81.12
64 20.00% 71.58 71.58
64 10.00% 43.27 43.27
128 100.00% 90.02 90.02
128 90.00% 88.89 88.89
128 80.00% 87.47 87.47
128 70.00% 85.71 85.71
128 60.00% 83.33 83.33
128 50.00% 80.07 80.07
128 40.00% 75.04 75.04
128 30.00% 66.64 66.64
128 20.00% 50.08 50.08
128 10.00% 0.12 0.12
256 100.00% 81.47 81.47
256 90.00% 79.48 79.48
256 80.00% 76.85 76.85
256 70.00% 73.60 73.60
256 60.00% 69.22 69.22
256 50.00% 63.05 63.05
256 40.00% 53.69 53.69
256 30.00% 38.28 38.28
256 20.00% 7.36 7.36
256 10.00% 0.00 0.00
512 100.00% 65.91 65.91
512 90.00% 62.13 62.13
512 80.00% 57.38 57.38
512 70.00% 51.28 51.28
512 60.00% 43.19 43.19
512 50.00% 31.76 31.76
512 40.00% 14.59 14.59
512 30.00% 0.00 0.00
512 20.00% - -
512 10.00% - -
1,024 100.00% 38.36 38.36
1,024 90.00% 31.45 31.45
1,024 80.00% 23.01 23.01
1,024 70.00% 12.11 12.11
1,024 60.00% 0.00 0.00
1,024 50.00% - -
1,024 40.00% - -
1,024 30.00% - -
1,024 20.00% - -
1,024 10.00% - -
1,280 100.00% 25.63 25.63
1,280 90.00% 17.30 17.30
1,280 80.00% 6.95 6.95
1,280 70.00% 0.00 0.00
1,280 60.00% - -
1,280 50.00% - -
1,280 40.00% - -
1,280 30.00% - -
1,280 20.00% - -
1,280 10.00% - -
1,518 100.00% 98.18 98.18
1,518 90.00% 96.85 96.85
1,518 80.00% 97.17 97.17
1,518 70.00% 96.93 96.93
1,518 60.00% 93.93 93.93
1,518 50.00% 97.18 97.18
1,518 40.00% 96.11 96.11
1,518 30.00% 89.06 89.06
1,518 20.00% 89.45 89.45
1,518 10.00% 3.34 3.34

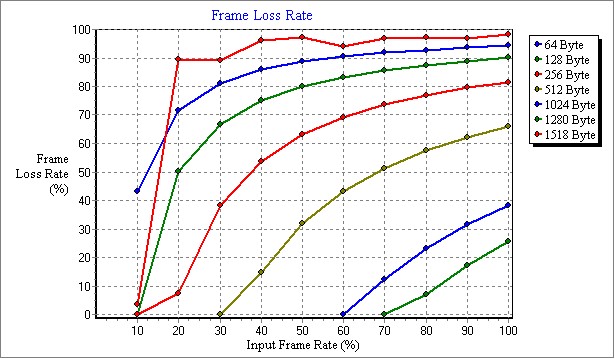

Results (Chart)
