Report - RFC2544 Automatic Test

MP1590B Network Performance Tester
Version 9.06.21
2020/09/28 00:11:43
Port List Port Settings Throughput Latency Frame Loss Rate

Port List

Top

Port Settings

Top
Unit1:3:4Unit1:3:1
  • Ownership: Owner
  • Mode: Normal
  • MAC Address: 00-00-00-00-00-04
  • IPv4:
    • This Port:
      • IPv4 Address: 192.168.2.2
      • Netmask: 255.255.255.0
      • Gateway: 192.168.2.1
    • ARP Reply: Reply to this port ARP request
    • ICMP Echo (PING) Reply: Reply to this port PING request
  • VLAN:
    • Enabled: OFF
    • This Port VLAN:
      • No., TPID (hex), Priority, VID (dec)
      • 1, 8100, 0, 1
      • 2
      • 3
      • 4
      • 5
      • 6
      • 7
      • 8
      • 9
      • 10
    • CFI: Reset
  • Protocols:
    • Protocol Filter:
      • IGMP: OFF
      • BGP4: OFF
  • Mapping: Framed
  • MII Properties:
    • Auto Negotiation: ON
      • Capabilities To Be Advertised:
        • 10M bps Half Duplex: ON
        • 10M bps Full Duplex: ON
        • 100M bps Half Duplex: ON
        • 100M bps Full Duplex: ON
        • 1000M bps Half Duplex: ON
        • 1000M bps Full Duplex: ON
      • Timing: Auto
      • Auto MDI/MDI-X: ON
    • Loopback (1000M Full only): OFF
    • Flow Control Receive (Full Duplex only):
      • Multicast Pause Address: OFF
      • Directed Address: OFF
  • Maximum Frame Size: 1518
  • Preamble: OFF
  • Ownership: Owner
  • Mode: Normal
  • MAC Address: 00-00-00-00-00-01
  • IPv4:
    • This Port:
      • IPv4 Address: 192.168.1.2
      • Netmask: 255.255.255.0
      • Gateway: 192.168.1.1
    • ARP Reply: Reply to this port ARP request
    • ICMP Echo (PING) Reply: Reply to this port PING request
  • VLAN:
    • Enabled: OFF
    • This Port VLAN:
      • No., TPID (hex), Priority, VID (dec)
      • 1, 8100, 0, 1
      • 2
      • 3
      • 4
      • 5
      • 6
      • 7
      • 8
      • 9
      • 10
    • CFI: Reset
  • Protocols:
    • Protocol Filter:
      • IGMP: OFF
      • BGP4: OFF
  • Mapping: Framed
  • MII Properties:
    • Auto Negotiation:
      • On: ON
      • Timeout Enable: OFF
    • Loopback: OFF
    • Flow Control Receive:
      • Multicast Pause Address: OFF
      • Directed Address: OFF
  • Maximum Frame Size: 1518
  • Preamble: OFF

Throughput

Top

Test Settings

[Test Method]
Traffic Distribution: One to One
Traffic Orientation: Unidirectional
[Ports]
VLAN Tag A: OFF
VLAN Tag B: OFF
VLAN ID: 1
[Test Frame]
Frame Sizes to Use: RFC2544 Frame Sizes: 64, 128, 256, 512, 1024, 1280, 1518 byte
Protocol: IP
Version of IP: IPv4
Device Type: Store and Forward
[Learning Frame (for Ethernet Modules)]
Learning Mode: Once
Retries: 1
[Throughput]
Duration: 60s
Number of Trials: 1
Burst Size: 1
Initial Rate: 100.00%
Minimum Rate: 0.10%
Maximum Rate: 100.00%
Resolution: 0.50%
Loss Tolerance: 0.0000%

Results (Table)

Frame Rate (%)
Frame Size Average 1
64 2.00 2.00
128 3.50 3.50
256 6.50 6.50
512 11.50 11.50
1,024 18.00 18.00
1,280 21.00 21.00
1,518 9.00 9.00

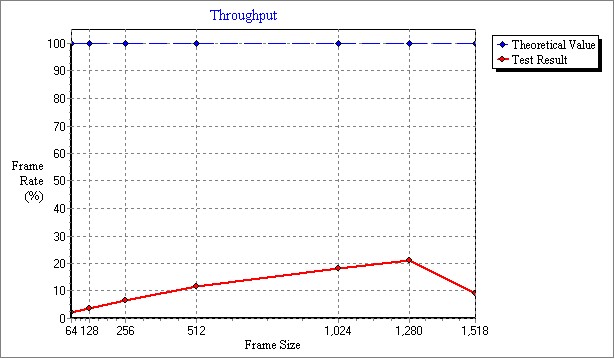

Results (Chart)


Latency

Top

Test Settings

[Test Method]
Traffic Distribution: One to One
Traffic Orientation: Unidirectional
[Ports]
VLAN Tag A: OFF
VLAN Tag B: OFF
VLAN ID: 1
[Test Frame]
Frame Sizes to Use: RFC2544 Frame Sizes: 64, 128, 256, 512, 1024, 1280, 1518 byte
Protocol: IP
Version of IP: IPv4
Device Type: Store and Forward
[Learning Frame (for Ethernet Modules)]
Learning Mode: Once
Retries: 1
[Latency]
Duration: 120s
Number of Trials: 1
Burst Size: 1
Frame Rate: Result of Throughput Rate

Results (Table)

Latency (s)
Frame Size Average 1
64 0.000045666 0.000045666
128 0.000039838 0.000039838
256 0.070833630 0.070833630
512 0.080071622 0.080071622
1,024 0.097927586 0.097927586
1,280 0.106547426 0.106547426
1,518 0.286515958 0.286515958

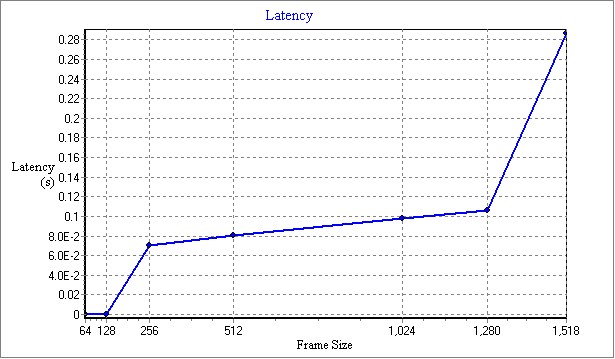

Results (Chart)


Frame Loss Rate

Top

Test Settings

[Test Method]
Traffic Distribution: One to One
Traffic Orientation: Unidirectional
[Ports]
VLAN Tag A: OFF
VLAN Tag B: OFF
VLAN ID: 1
[Test Frame]
Frame Sizes to Use: RFC2544 Frame Sizes: 64, 128, 256, 512, 1024, 1280, 1518 byte
Protocol: IP
Version of IP: IPv4
Device Type: Store and Forward
[Learning Frame (for Ethernet Modules)]
Learning Mode: Once
Retries: 1
[Frame Loss Rate]
Duration: 60s
Number of Trials: 1
Burst Size: 1
Initial Rate: 100%
Step Rate: 10%

Results (Table)

Frame Loss Rate (%)
Frame Size Frame Rate Average 1
64 100.00% 97.77 97.77
64 90.00% 97.52 97.52
64 80.00% 97.21 97.21
64 70.00% 96.81 96.81
64 60.00% 96.28 96.28
64 50.00% 95.53 95.53
64 40.00% 94.42 94.42
64 30.00% 92.55 92.55
64 20.00% 88.82 88.82
64 10.00% 77.63 77.63
128 100.00% 96.19 96.19
128 90.00% 95.77 95.77
128 80.00% 95.25 95.25
128 70.00% 94.56 94.56
128 60.00% 93.67 93.67
128 50.00% 92.42 92.42
128 40.00% 90.50 90.50
128 30.00% 87.31 87.31
128 20.00% 80.93 80.93
128 10.00% 61.92 61.92
256 100.00% 93.33 93.33
256 90.00% 92.58 92.58
256 80.00% 91.61 91.61
256 70.00% 90.45 90.45
256 60.00% 88.85 88.85
256 50.00% 86.65 86.65
256 40.00% 83.27 83.27
256 30.00% 77.67 77.67
256 20.00% 66.52 66.52
256 10.00% 33.05 33.05
512 100.00% 88.49 88.49
512 90.00% 87.27 87.27
512 80.00% 85.60 85.60
512 70.00% 83.59 83.59
512 60.00% 80.84 80.84
512 50.00% 76.97 76.97
512 40.00% 71.29 71.29
512 30.00% 61.57 61.57
512 20.00% 42.45 42.45
512 10.00% -24.48 -24.48
1,024 100.00% 81.53 81.53
1,024 90.00% 79.61 79.61
1,024 80.00% 77.07 77.07
1,024 70.00% 73.71 73.71
1,024 60.00% 69.36 69.36
1,024 50.00% 63.26 63.26
1,024 40.00% 54.01 54.01
1,024 30.00% 38.70 38.70
1,024 20.00% 8.20 8.20
1,024 10.00% -99.44 -99.44
1,280 100.00% 79.04 79.04
1,280 90.00% 76.72 76.72
1,280 80.00% 73.81 73.81
1,280 70.00% 70.09 70.09
1,280 60.00% 65.10 65.10
1,280 50.00% 58.04 58.04
1,280 40.00% 47.54 47.54
1,280 30.00% 30.08 30.08
1,280 20.00% -4.95 -4.95
1,280 10.00% - -
1,518 100.00% 90.70 90.70
1,518 90.00% 89.67 89.67
1,518 80.00% 88.37 88.37
1,518 70.00% 86.70 86.70
1,518 60.00% 84.50 84.50
1,518 50.00% 81.39 81.39
1,518 40.00% 76.73 76.73
1,518 30.00% 68.98 68.98
1,518 20.00% 53.51 53.51
1,518 10.00% 7.09 7.09

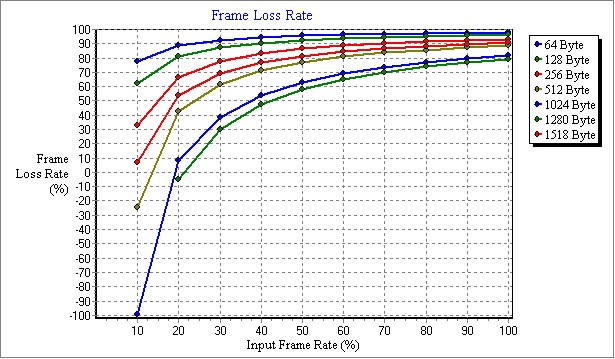

Results (Chart)
