Report - RFC2544 Automatic Test

MP1590B Network Performance Tester
Version 9.06.21
2020/09/27 20:47:30
Port List Port Settings Throughput Latency Frame Loss Rate

Port List

Top

Port Settings

Top
Unit1:3:1Unit1:3:4
  • Ownership: Owner
  • Mode: Normal
  • MAC Address: 00-00-00-00-00-01
  • IPv4:
    • This Port:
      • IPv4 Address: 192.168.1.2
      • Netmask: 255.255.255.0
      • Gateway: 192.168.1.1
    • ARP Reply: Reply to this port ARP request
    • ICMP Echo (PING) Reply: Reply to this port PING request
  • VLAN:
    • Enabled: OFF
    • This Port VLAN:
      • No., TPID (hex), Priority, VID (dec)
      • 1, 8100, 0, 1
      • 2
      • 3
      • 4
      • 5
      • 6
      • 7
      • 8
      • 9
      • 10
    • CFI: Reset
  • Protocols:
    • Protocol Filter:
      • IGMP: OFF
      • BGP4: OFF
  • Mapping: Framed
  • MII Properties:
    • Auto Negotiation:
      • On: ON
      • Timeout Enable: OFF
    • Loopback: OFF
    • Flow Control Receive:
      • Multicast Pause Address: OFF
      • Directed Address: OFF
  • Maximum Frame Size: 1518
  • Preamble: OFF
  • Ownership: Owner
  • Mode: Normal
  • MAC Address: 00-00-00-00-00-04
  • IPv4:
    • This Port:
      • IPv4 Address: 192.168.2.2
      • Netmask: 255.255.255.0
      • Gateway: 192.168.2.1
    • ARP Reply: Reply to this port ARP request
    • ICMP Echo (PING) Reply: Reply to this port PING request
  • VLAN:
    • Enabled: OFF
    • This Port VLAN:
      • No., TPID (hex), Priority, VID (dec)
      • 1, 8100, 0, 1
      • 2
      • 3
      • 4
      • 5
      • 6
      • 7
      • 8
      • 9
      • 10
    • CFI: Reset
  • Protocols:
    • Protocol Filter:
      • IGMP: OFF
      • BGP4: OFF
  • Mapping: Framed
  • MII Properties:
    • Auto Negotiation: ON
      • Capabilities To Be Advertised:
        • 10M bps Half Duplex: ON
        • 10M bps Full Duplex: ON
        • 100M bps Half Duplex: ON
        • 100M bps Full Duplex: ON
        • 1000M bps Half Duplex: ON
        • 1000M bps Full Duplex: ON
      • Timing: Auto
      • Auto MDI/MDI-X: ON
    • Loopback (1000M Full only): OFF
    • Flow Control Receive (Full Duplex only):
      • Multicast Pause Address: OFF
      • Directed Address: OFF
  • Maximum Frame Size: 1518
  • Preamble: OFF

Throughput

Top

Test Settings

[Test Method]
Traffic Distribution: One to One
Traffic Orientation: Unidirectional
[Ports]
VLAN Tag A: OFF
VLAN Tag B: OFF
VLAN ID: 1
[Test Frame]
Frame Sizes to Use: RFC2544 Frame Sizes: 64, 128, 256, 512, 1024, 1280, 1518 byte
Protocol: IP
Version of IP: IPv4
Device Type: Store and Forward
[Learning Frame (for Ethernet Modules)]
Learning Mode: Once
Retries: 1
[Throughput]
Duration: 60s
Number of Trials: 1
Burst Size: 1
Initial Rate: 100.00%
Minimum Rate: 0.10%
Maximum Rate: 100.00%
Resolution: 0.50%
Loss Tolerance: 0.0000%

Results (Table)

Frame Rate (%)
Frame Size Average 1
64 2.00 2.00
128 3.50 3.50
256 6.50 6.50
512 12.50 12.50
1,024 24.00 24.00
1,280 29.00 29.00
1,518 11.00 11.00

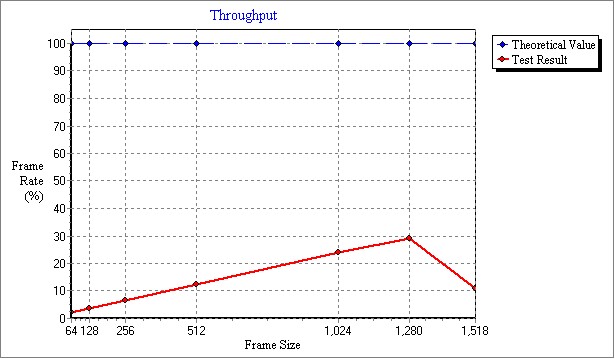

Results (Chart)


Latency

Top

Test Settings

[Test Method]
Traffic Distribution: One to One
Traffic Orientation: Unidirectional
[Ports]
VLAN Tag A: OFF
VLAN Tag B: OFF
VLAN ID: 1
[Test Frame]
Frame Sizes to Use: RFC2544 Frame Sizes: 64, 128, 256, 512, 1024, 1280, 1518 byte
Protocol: IP
Version of IP: IPv4
Device Type: Store and Forward
[Learning Frame (for Ethernet Modules)]
Learning Mode: Once
Retries: 1
[Latency]
Duration: 120s
Number of Trials: 1
Burst Size: 1
Frame Rate: Result of Throughput Rate

Results (Table)

Latency (s)
Frame Size Average 1
64 0.037320614 0.037320614
128 0.037371466 0.037371466
256 0.037835702 0.037835702
512 0.038230418 0.038230418
1,024 0.040152318 0.040152318
1,280 0.041066114 0.041066114
1,518 0.000107182 0.000107182

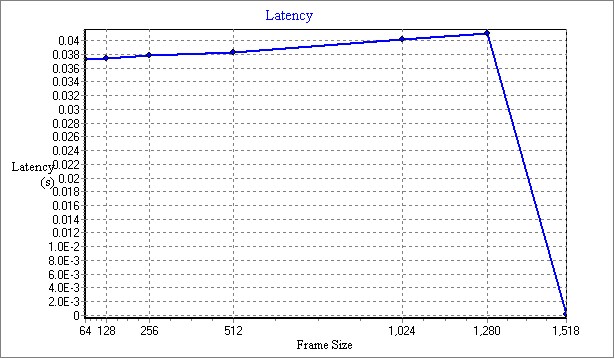

Results (Chart)


Frame Loss Rate

Top

Test Settings

[Test Method]
Traffic Distribution: One to One
Traffic Orientation: Unidirectional
[Ports]
VLAN Tag A: OFF
VLAN Tag B: OFF
VLAN ID: 1
[Test Frame]
Frame Sizes to Use: RFC2544 Frame Sizes: 64, 128, 256, 512, 1024, 1280, 1518 byte
Protocol: IP
Version of IP: IPv4
Device Type: Store and Forward
[Learning Frame (for Ethernet Modules)]
Learning Mode: Once
Retries: 1
[Frame Loss Rate]
Duration: 60s
Number of Trials: 1
Burst Size: 1
Initial Rate: 100%
Step Rate: 10%

Results (Table)

Frame Loss Rate (%)
Frame Size Frame Rate Average 1
64 100.00% 98.03 98.03
64 90.00% 97.11 97.11
64 80.00% 96.76 96.76
64 70.00% 96.57 96.57
64 60.00% 95.65 95.65
64 50.00% 94.79 94.79
64 40.00% 93.47 93.47
64 30.00% 91.95 91.95
64 20.00% 90.07 90.07
64 10.00% 73.84 73.84
128 100.00% 95.49 95.49
128 90.00% 94.98 94.98
128 80.00% 94.33 94.33
128 70.00% 93.49 93.49
128 60.00% 92.42 92.42
128 50.00% 91.44 91.44
128 40.00% 88.59 88.59
128 30.00% 84.79 84.79
128 20.00% 82.39 82.39
128 10.00% 63.03 63.03
256 100.00% 92.00 92.00
256 90.00% 92.59 92.59
256 80.00% 89.98 89.98
256 70.00% 90.46 90.46
256 60.00% 86.66 86.66
256 50.00% 86.74 86.74
256 40.00% 80.14 80.14
256 30.00% 73.51 73.51
256 20.00% 65.68 65.68
256 10.00% 31.47 31.47
512 100.00% 86.62 86.62
512 90.00% 85.20 85.20
512 80.00% 87.06 87.06
512 70.00% 81.01 81.01
512 60.00% 77.78 77.78
512 50.00% 73.40 73.40
512 40.00% 66.73 66.73
512 30.00% 56.66 56.66
512 20.00% 37.91 37.91
512 10.00% -35.66 -35.66
1,024 100.00% 74.19 74.19
1,024 90.00% 71.80 71.80
1,024 80.00% 68.20 68.20
1,024 70.00% 63.17 63.17
1,024 60.00% 57.19 57.19
1,024 50.00% 50.91 50.91
1,024 40.00% 40.00 40.00
1,024 30.00% 19.70 19.70
1,024 20.00% -22.14 -22.14
1,024 10.00% - -
1,280 100.00% 73.63 73.63
1,280 90.00% 66.87 66.87
1,280 80.00% 69.25 69.25
1,280 70.00% 65.53 65.53
1,280 60.00% 54.24 54.24
1,280 50.00% 43.84 43.84
1,280 40.00% 38.84 38.84
1,280 30.00% 2.26 2.26
1,280 20.00% -68.50 -68.50
1,280 10.00% - -
1,518 100.00% 75.88 75.88
1,518 90.00% 74.30 74.30
1,518 80.00% 70.62 70.62
1,518 70.00% 67.27 67.27
1,518 60.00% 61.80 61.80
1,518 50.00% 56.30 56.30
1,518 40.00% 49.35 49.35
1,518 30.00% 32.44 32.44
1,518 20.00% 5.53 5.53
1,518 10.00% -1.68 -1.68

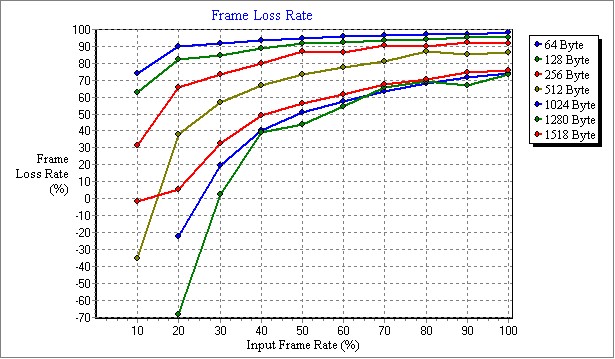

Results (Chart)
