Report - RFC2544 Automatic Test

MP1590B Network Performance Tester
Version 9.06.23
2022/11/13 03:44:03
Port List Port Settings Throughput Latency Frame Loss Rate

Port List

Top

Port Settings

Top
Unit1:3:1Unit1:3:4
  • Ownership: Owner
  • Mode: Normal
  • MAC Address: 00-00-00-00-00-01
  • IPv4:
    • This Port:
      • IPv4 Address: 192.168.0.100
      • Netmask: 255.255.255.0
      • Gateway: 192.168.0.1
    • ARP Reply: Reply to this port ARP request
    • ICMP Echo (PING) Reply: Reply to this port PING request
  • VLAN:
    • Enabled: OFF
    • This Port VLAN:
      • No., TPID (hex), Priority, VID (dec)
      • 1, 8100, 0, 1
      • 2
      • 3
      • 4
      • 5
      • 6
      • 7
      • 8
      • 9
      • 10
    • CFI: Reset
  • Protocols:
    • Protocol Filter:
      • IGMP: OFF
      • BGP4: OFF
  • Mapping: Framed
  • MII Properties:
    • Auto Negotiation:
      • On: ON
      • Timeout Enable: OFF
    • Loopback: OFF
    • Flow Control Receive:
      • Multicast Pause Address: OFF
      • Directed Address: OFF
  • Maximum Frame Size: 1518
  • Preamble: OFF
  • Ownership: Owner
  • Mode: Normal
  • MAC Address: 00-00-00-00-00-00
  • IPv4:
    • This Port:
      • IPv4 Address: 192.168.1.2
      • Netmask: 255.255.255.0
      • Gateway: 192.168.1.1
    • ARP Reply: Reply to this port ARP request
    • ICMP Echo (PING) Reply: Reply to this port PING request
  • VLAN:
    • Enabled: OFF
    • This Port VLAN:
      • No., TPID (hex), Priority, VID (dec)
      • 1, 8100, 0, 1
      • 2
      • 3
      • 4
      • 5
      • 6
      • 7
      • 8
      • 9
      • 10
    • CFI: Reset
  • Protocols:
    • Protocol Filter:
      • IGMP: OFF
      • BGP4: OFF
  • Mapping: Framed
  • MII Properties:
    • Auto Negotiation: ON
      • Capabilities To Be Advertised:
        • 10M bps Half Duplex: ON
        • 10M bps Full Duplex: ON
        • 100M bps Half Duplex: ON
        • 100M bps Full Duplex: ON
        • 1000M bps Half Duplex: ON
        • 1000M bps Full Duplex: ON
      • Timing: Auto
      • Auto MDI/MDI-X: ON
    • Loopback (1000M Full only): OFF
    • Flow Control Receive (Full Duplex only):
      • Multicast Pause Address: OFF
      • Directed Address: OFF
  • Maximum Frame Size: 1518
  • Preamble: OFF

Throughput

Top

Test Settings

[Test Method]
Traffic Distribution: One to One
Traffic Orientation: Unidirectional
[Ports]
VLAN Tag A: OFF
VLAN Tag B: OFF
VLAN ID: 1
[Test Frame]
Frame Sizes to Use: RFC2544 Frame Sizes: 64, 128, 256, 512, 1024, 1280, 1518 byte
Protocol: IP
Version of IP: IPv4
Device Type: Store and Forward
[Learning Frame (for Ethernet Modules)]
Learning Mode: Once
Retries: 1
[Throughput]
Duration: 60s
Number of Trials: 1
Burst Size: 1
Initial Rate: 100.00%
Minimum Rate: 0.10%
Maximum Rate: 100.00%
Resolution: 0.50%
Loss Tolerance: 0.0000%

Results (Table)

Frame/s
Frame Size Average 1
64 386,904 386,904
128 363,175 363,175
256 389,492 389,492
512 233,787 233,787
1,024 119,731 119,731
1,280 96,153 96,153
1,518 81,274 81,274

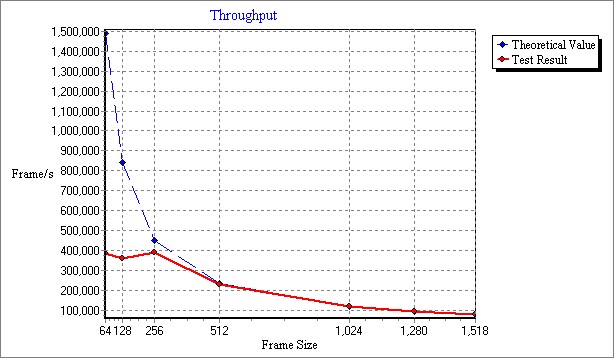

Results (Chart)


Latency

Top

Test Settings

[Test Method]
Traffic Distribution: One to One
Traffic Orientation: Unidirectional
[Ports]
VLAN Tag A: OFF
VLAN Tag B: OFF
VLAN ID: 1
[Test Frame]
Frame Sizes to Use: RFC2544 Frame Sizes: 64, 128, 256, 512, 1024, 1280, 1518 byte
Protocol: IP
Version of IP: IPv4
Device Type: Store and Forward
[Learning Frame (for Ethernet Modules)]
Learning Mode: Once
Retries: 1
[Latency]
Duration: 120s
Number of Trials: 1
Burst Size: 1
Frame Rate: Result of Throughput Rate

Results (Table)

Latency (s)
Frame Size Average 1
64 0.000047346 0.000047346
128 0.000039414 0.000039414
256 0.000050614 0.000050614
512 0.000661482 0.000661482
1,024 0.000435750 0.000435750
1,280 0.000490918 0.000490918
1,518 0.000501682 0.000501682

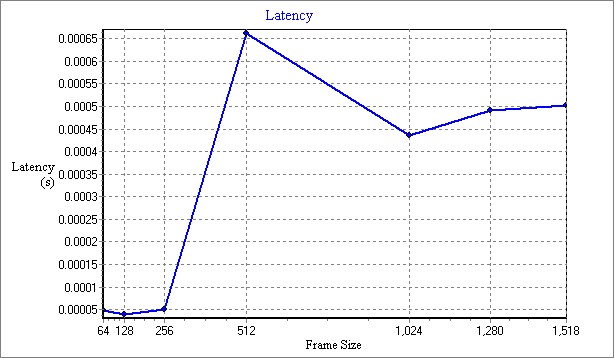

Results (Chart)


Frame Loss Rate

Top

Test Settings

[Test Method]
Traffic Distribution: One to One
Traffic Orientation: Unidirectional
[Ports]
VLAN Tag A: OFF
VLAN Tag B: OFF
VLAN ID: 1
[Test Frame]
Frame Sizes to Use: RFC2544 Frame Sizes: 64, 128, 256, 512, 1024, 1280, 1518 byte
Protocol: IP
Version of IP: IPv4
Device Type: Store and Forward
[Learning Frame (for Ethernet Modules)]
Learning Mode: Once
Retries: 1
[Frame Loss Rate]
Duration: 60s
Number of Trials: 1
Burst Size: 1
Initial Rate: 100%
Step Rate: 10%

Results (Table)

Frame Loss Rate (%)
Frame Size Frame Rate Average 1
64 100.00% 73.60 73.60
64 90.00% 70.63 70.63
64 80.00% 66.99 66.99
64 70.00% 62.49 62.49
64 60.00% 55.97 55.97
64 50.00% 47.02 47.02
64 40.00% 33.94 33.94
64 30.00% 11.99 11.99
64 20.00% 0.00 0.00
64 10.00% - -
128 100.00% 53.46 53.46
128 90.00% 48.28 48.28
128 80.00% 41.80 41.80
128 70.00% 33.65 33.65
128 60.00% 22.50 22.50
128 50.00% 6.87 6.87
128 40.00% 0.00 0.00
128 30.00% - -
128 20.00% - -
128 10.00% - -
256 100.00% 13.18 13.18
256 90.00% 3.74 3.74
256 80.00% 0.00 0.00
256 70.00% - -
256 60.00% - -
256 50.00% - -
256 40.00% - -
256 30.00% - -
256 20.00% - -
256 10.00% - -
512 100.00% 0.00 0.00
512 90.00% - -
512 80.00% - -
512 70.00% - -
512 60.00% - -
512 50.00% - -
512 40.00% - -
512 30.00% - -
512 20.00% - -
512 10.00% - -
1,024 100.00% 0.00 0.00
1,024 90.00% - -
1,024 80.00% - -
1,024 70.00% - -
1,024 60.00% - -
1,024 50.00% - -
1,024 40.00% - -
1,024 30.00% - -
1,024 20.00% - -
1,024 10.00% - -
1,280 100.00% 0.00 0.00
1,280 90.00% - -
1,280 80.00% - -
1,280 70.00% - -
1,280 60.00% - -
1,280 50.00% - -
1,280 40.00% - -
1,280 30.00% - -
1,280 20.00% - -
1,280 10.00% - -
1,518 100.00% 0.00 0.00
1,518 90.00% - -
1,518 80.00% - -
1,518 70.00% - -
1,518 60.00% - -
1,518 50.00% - -
1,518 40.00% - -
1,518 30.00% - -
1,518 20.00% - -
1,518 10.00% - -

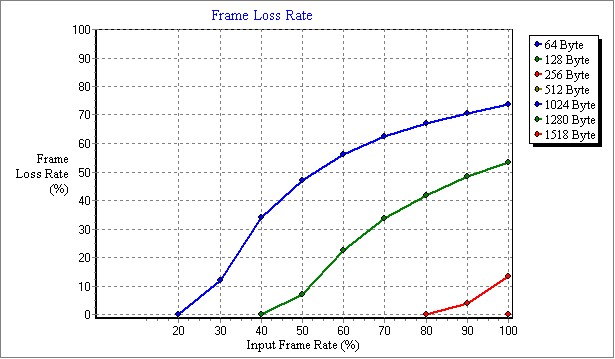

Results (Chart)
