Report - RFC2544 Automatic Test

MP1590B Network Performance Tester
Version 9.06.21
2020/11/11 00:31:53
Port List Port Settings Throughput Frame Loss Rate

Port List

Top

Port Settings

Top
Unit1:3:1Unit1:3:4
  • Ownership: Owner
  • Mode: Normal
  • MAC Address: 00-00-00-00-00-01
  • IPv4:
    • This Port:
      • IPv4 Address: 192.168.0.1
      • Netmask: 255.255.255.0
      • Gateway: 0.0.0.0
    • ARP Reply: Reply to this port ARP request
    • ICMP Echo (PING) Reply: Reply to this port PING request
  • VLAN:
    • Enabled: OFF
    • This Port VLAN:
      • No., TPID (hex), Priority, VID (dec)
      • 1, 8100, 0, 1
      • 2
      • 3
      • 4
      • 5
      • 6
      • 7
      • 8
      • 9
      • 10
    • CFI: Reset
  • Protocols:
    • Protocol Filter:
      • IGMP: OFF
      • BGP4: OFF
  • Mapping: Framed
  • MII Properties:
    • Auto Negotiation:
      • On: ON
      • Timeout Enable: OFF
    • Loopback: OFF
    • Flow Control Receive:
      • Multicast Pause Address: OFF
      • Directed Address: OFF
  • Maximum Frame Size: 1518
  • Preamble: OFF
  • Ownership: Owner
  • Mode: Normal
  • MAC Address: 00-00-00-00-00-04
  • IPv4:
    • This Port:
      • IPv4 Address: 192.168.0.2
      • Netmask: 255.255.255.0
      • Gateway: 0.0.0.0
    • ARP Reply: Reply to this port ARP request
    • ICMP Echo (PING) Reply: Reply to this port PING request
  • VLAN:
    • Enabled: OFF
    • This Port VLAN:
      • No., TPID (hex), Priority, VID (dec)
      • 1, 8100, 0, 1
      • 2
      • 3
      • 4
      • 5
      • 6
      • 7
      • 8
      • 9
      • 10
    • CFI: Reset
  • Protocols:
    • Protocol Filter:
      • IGMP: OFF
      • BGP4: OFF
  • Mapping: Framed
  • MII Properties:
    • Auto Negotiation: ON
      • Capabilities To Be Advertised:
        • 10M bps Half Duplex: ON
        • 10M bps Full Duplex: ON
        • 100M bps Half Duplex: ON
        • 100M bps Full Duplex: ON
        • 1000M bps Half Duplex: ON
        • 1000M bps Full Duplex: ON
      • Timing: Auto
      • Auto MDI/MDI-X: ON
    • Loopback (1000M Full only): OFF
    • Flow Control Receive (Full Duplex only):
      • Multicast Pause Address: OFF
      • Directed Address: OFF
  • Maximum Frame Size: 1518
  • Preamble: OFF

Throughput

Top

Test Settings

[Test Method]
Traffic Distribution: One to One
Traffic Orientation: Unidirectional
[Ports]
VLAN Tag A: OFF
VLAN Tag B: OFF
VLAN ID: 1
[Test Frame]
Frame Sizes to Use: RFC2544 Frame Sizes: 64, 128, 256, 512, 1024, 1280, 1518 byte
Protocol: MAC
Version of IP: IPv4
Device Type: Store and Forward
[Learning Frame (for Ethernet Modules)]
Learning Mode: Once
Retries: 1
[Throughput]
Duration: 60s
Number of Trials: 1
Burst Size: 1
Initial Rate: 100.00%
Minimum Rate: 0.10%
Maximum Rate: 100.00%
Resolution: 0.50%
Loss Tolerance: 0.0000%

Results (Table)

Bit/s
Frame Size Average 1
64 45,713,920 45,713,920
128 90,810,368 90,810,368
256 180,869,120 180,869,120
512 365,711,360 365,711,360
1,024 706,199,552 706,199,552
1,280 984,606,720 984,606,720
1,518 986,991,456 986,991,456

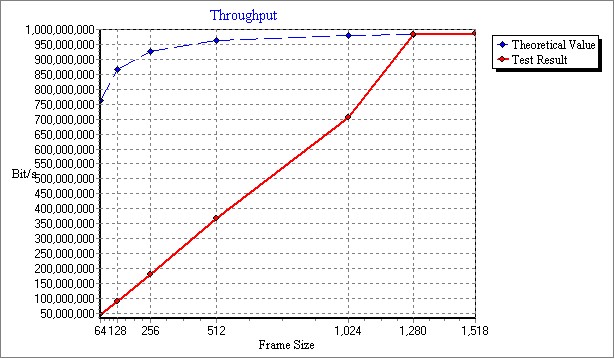

Results (Chart)


Frame Loss Rate

Top

Test Settings

[Test Method]
Traffic Distribution: One to One
Traffic Orientation: Unidirectional
[Ports]
VLAN Tag A: OFF
VLAN Tag B: OFF
VLAN ID: 1
[Test Frame]
Frame Sizes to Use: RFC2544 Frame Sizes: 64, 128, 256, 512, 1024, 1280, 1518 byte
Protocol: MAC
Version of IP: IPv4
Device Type: Store and Forward
[Learning Frame (for Ethernet Modules)]
Learning Mode: Once
Retries: 1
[Frame Loss Rate]
Duration: 60s
Number of Trials: 1
Burst Size: 1
Initial Rate: 100%
Step Rate: 10%

Results (Table)

Frame Loss Rate (%)
Frame Size Frame Rate Average 1
64 100.00% 93.82 93.82
64 90.00% 93.13 93.13
64 80.00% 92.27 92.27
64 70.00% 91.18 91.18
64 60.00% 89.89 89.89
64 50.00% 87.87 87.87
64 40.00% 84.83 84.83
64 30.00% 79.78 79.78
64 20.00% 69.67 69.67
64 10.00% 39.39 39.39
128 100.00% 89.29 89.29
128 90.00% 87.86 87.86
128 80.00% 86.63 86.63
128 70.00% 84.71 84.71
128 60.00% 82.16 82.16
128 50.00% 78.60 78.60
128 40.00% 73.25 73.25
128 30.00% 64.33 64.33
128 20.00% 46.48 46.48
128 10.00% 0.00 0.00
256 100.00% 80.09 80.09
256 90.00% 77.87 77.87
256 80.00% 75.11 75.11
256 70.00% 71.56 71.56
256 60.00% 66.81 66.81
256 50.00% 60.17 60.17
256 40.00% 49.58 49.58
256 30.00% 33.27 33.27
256 20.00% 0.54 0.54
256 10.00% 0.00 0.00
512 100.00% 61.89 61.89
512 90.00% 57.61 57.61
512 80.00% 52.32 52.32
512 70.00% 45.45 45.45
512 60.00% 36.38 36.38
512 50.00% 23.59 23.59
512 40.00% 2.87 2.87
512 30.00% 0.00 0.00
512 20.00% - -
512 10.00% - -
1,024 100.00% 24.08 24.08
1,024 90.00% 16.10 16.10
1,024 80.00% 7.06 7.06
1,024 70.00% 0.00 0.00
1,024 60.00% - -
1,024 50.00% - -
1,024 40.00% - -
1,024 30.00% - -
1,024 20.00% - -
1,024 10.00% - -
1,280 100.00% 0.00 0.00
1,280 90.00% - -
1,280 80.00% - -
1,280 70.00% - -
1,280 60.00% - -
1,280 50.00% - -
1,280 40.00% - -
1,280 30.00% - -
1,280 20.00% - -
1,280 10.00% - -
1,518 100.00% 0.00 0.00
1,518 90.00% - -
1,518 80.00% - -
1,518 70.00% - -
1,518 60.00% - -
1,518 50.00% - -
1,518 40.00% - -
1,518 30.00% - -
1,518 20.00% - -
1,518 10.00% - -

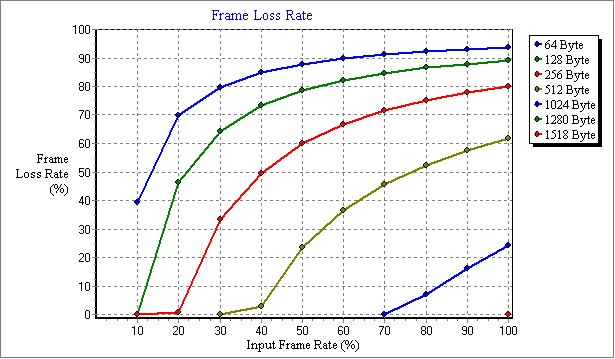

Results (Chart)
