Report - RFC2544 Automatic Test

MP1590B Network Performance Tester
Version 9.06.21
2020/12/11 12:39:31
Port List Port Settings Throughput Latency Frame Loss Rate

Port List

Top

Port Settings

Top
Unit1:3:1Unit1:3:4
  • Ownership: Owner
  • Mode: Normal
  • MAC Address: 00-00-00-00-00-01
  • IPv4:
    • This Port:
      • IPv4 Address: 192.168.1.2
      • Netmask: 255.255.255.0
      • Gateway: 192.168.1.1
    • ARP Reply: Reply to this port ARP request
    • ICMP Echo (PING) Reply: Reply to this port PING request
  • VLAN:
    • Enabled: OFF
    • This Port VLAN:
      • No., TPID (hex), Priority, VID (dec)
      • 1, 8100, 0, 1
      • 2
      • 3
      • 4
      • 5
      • 6
      • 7
      • 8
      • 9
      • 10
    • CFI: Reset
  • Protocols:
    • Protocol Filter:
      • IGMP: ON
      • BGP4: ON
  • Mapping: Framed
  • MII Properties:
    • Auto Negotiation:
      • On: ON
      • Timeout Enable: OFF
    • Loopback: OFF
    • Flow Control Receive:
      • Multicast Pause Address: OFF
      • Directed Address: OFF
  • Maximum Frame Size: 1518
  • Preamble: OFF
  • Ownership: Owner
  • Mode: Normal
  • MAC Address: 00-00-00-00-00-04
  • IPv4:
    • This Port:
      • IPv4 Address: 192.168.2.2
      • Netmask: 255.255.255.0
      • Gateway: 192.168.2.1
    • ARP Reply: Reply to this port ARP request
    • ICMP Echo (PING) Reply: Reply to this port PING request
  • VLAN:
    • Enabled: OFF
    • This Port VLAN:
      • No., TPID (hex), Priority, VID (dec)
      • 1, 8100, 0, 1
      • 2
      • 3
      • 4
      • 5
      • 6
      • 7
      • 8
      • 9
      • 10
    • CFI: Reset
  • Protocols:
    • Protocol Filter:
      • IGMP: OFF
      • BGP4: OFF
  • Mapping: Framed
  • MII Properties:
    • Auto Negotiation: ON
      • Capabilities To Be Advertised:
        • 10M bps Half Duplex: ON
        • 10M bps Full Duplex: ON
        • 100M bps Half Duplex: ON
        • 100M bps Full Duplex: ON
        • 1000M bps Half Duplex: ON
        • 1000M bps Full Duplex: ON
      • Timing: Auto
      • Auto MDI/MDI-X: ON
    • Loopback (1000M Full only): OFF
    • Flow Control Receive (Full Duplex only):
      • Multicast Pause Address: OFF
      • Directed Address: OFF
  • Maximum Frame Size: 1518
  • Preamble: OFF

Throughput

Top

Test Settings

[Test Method]
Traffic Distribution: One to One
Traffic Orientation: Unidirectional
[Ports]
VLAN Tag A: OFF
VLAN Tag B: OFF
VLAN ID: 1
[Test Frame]
Frame Sizes to Use: RFC2544 Frame Sizes: 64, 128, 256, 512, 1024, 1280, 1518 byte
Protocol: IP
Version of IP: IPv4
Device Type: Store and Forward
[Learning Frame (for Ethernet Modules)]
Learning Mode: Once
Retries: 1
[Throughput]
Duration: 60s
Number of Trials: 1
Burst Size: 1
Initial Rate: 100.00%
Minimum Rate: 0.10%
Maximum Rate: 100.00%
Resolution: 0.50%
Loss Tolerance: 0.0000%

Results (Table)

Frame/s
Frame Size Average 1
64 275,297 275,297
128 278,716 278,716
256 280,797 280,797
512 229,088 229,088
1,024 119,731 119,731
1,280 96,153 96,153
1,518 81,274 81,274

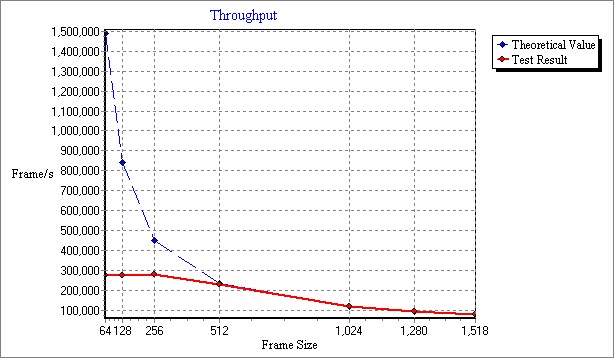

Results (Chart)


Latency

Top

Test Settings

[Test Method]
Traffic Distribution: One to One
Traffic Orientation: Unidirectional
[Ports]
VLAN Tag A: OFF
VLAN Tag B: OFF
VLAN ID: 1
[Test Frame]
Frame Sizes to Use: RFC2544 Frame Sizes: 64, 128, 256, 512, 1024, 1280, 1518 byte
Protocol: IP
Version of IP: IPv4
Device Type: Store and Forward
[Learning Frame (for Ethernet Modules)]
Learning Mode: Once
Retries: 1
[Latency]
Duration: 120s
Number of Trials: 1
Burst Size: 1
Frame Rate: Result of Throughput Rate

Results (Table)

Latency (s)
Frame Size Average 1
64 0.000220714 0.000220714
128 0.000064398 0.000064398
256 0.000166786 0.000166786
512 0.000181914 0.000181914
1,024 0.000512566 0.000512566
1,280 0.000500602 0.000500602
1,518 0.000508166 0.000508166

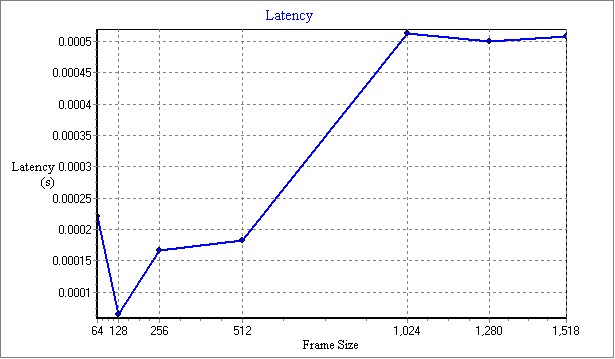

Results (Chart)


Frame Loss Rate

Top

Test Settings

[Test Method]
Traffic Distribution: One to One
Traffic Orientation: Unidirectional
[Ports]
VLAN Tag A: OFF
VLAN Tag B: OFF
VLAN ID: 1
[Test Frame]
Frame Sizes to Use: RFC2544 Frame Sizes: 64, 128, 256, 512, 1024, 1280, 1518 byte
Protocol: IP
Version of IP: IPv4
Device Type: Store and Forward
[Learning Frame (for Ethernet Modules)]
Learning Mode: Once
Retries: 1
[Frame Loss Rate]
Duration: 60s
Number of Trials: 1
Burst Size: 1
Initial Rate: 100%
Step Rate: 10%

Results (Table)

Frame Loss Rate (%)
Frame Size Frame Rate Average 1
64 100.00% 81.49 81.49
64 90.00% 79.44 79.44
64 80.00% 76.87 76.87
64 70.00% 73.56 73.56
64 60.00% 69.15 69.15
64 50.00% 62.99 62.99
64 40.00% 53.74 53.74
64 30.00% 38.30 38.30
64 20.00% 6.05 6.05
64 10.00% 0.00 0.00
128 100.00% 66.92 66.92
128 90.00% 63.24 63.24
128 80.00% 58.64 58.64
128 70.00% 52.73 52.73
128 60.00% 44.83 44.83
128 50.00% 33.77 33.77
128 40.00% 17.30 17.30
128 30.00% 0.00 0.00
128 20.00% - -
128 10.00% - -
256 100.00% 38.20 38.20
256 90.00% 31.54 31.54
256 80.00% 22.26 22.26
256 70.00% 10.91 10.91
256 60.00% 0.00 0.00
256 50.00% - -
256 40.00% - -
256 30.00% - -
256 20.00% - -
256 10.00% - -
512 100.00% 2.36 2.36
512 90.00% 0.00 0.00
512 80.00% - -
512 70.00% - -
512 60.00% - -
512 50.00% - -
512 40.00% - -
512 30.00% - -
512 20.00% - -
512 10.00% - -
1,024 100.00% 0.00 0.00
1,024 90.00% - -
1,024 80.00% - -
1,024 70.00% - -
1,024 60.00% - -
1,024 50.00% - -
1,024 40.00% - -
1,024 30.00% - -
1,024 20.00% - -
1,024 10.00% - -
1,280 100.00% 0.00 0.00
1,280 90.00% - -
1,280 80.00% - -
1,280 70.00% - -
1,280 60.00% - -
1,280 50.00% - -
1,280 40.00% - -
1,280 30.00% - -
1,280 20.00% - -
1,280 10.00% - -
1,518 100.00% 0.00 0.00
1,518 90.00% - -
1,518 80.00% - -
1,518 70.00% - -
1,518 60.00% - -
1,518 50.00% - -
1,518 40.00% - -
1,518 30.00% - -
1,518 20.00% - -
1,518 10.00% - -

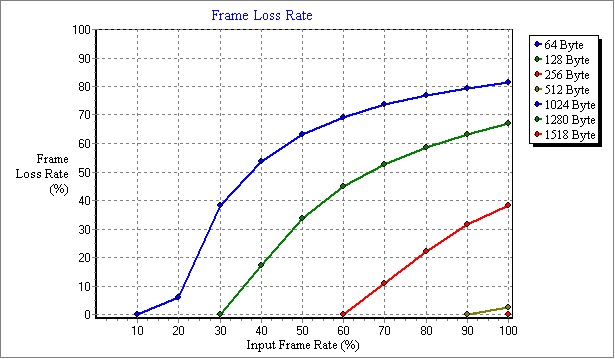

Results (Chart)
