Report - RFC2544 Automatic Test

MP1590B Network Performance Tester
Version 9.06.21
2020/10/14 21:50:11
Port List Port Settings Throughput Latency Frame Loss Rate

Port List

Top

Port Settings

Top
Unit1:3:1Unit1:3:4
  • Ownership: Owner
  • Mode: Normal
  • MAC Address: 00-00-00-00-00-01
  • IPv4:
    • This Port:
      • IPv4 Address: 192.168.0.2
      • Netmask: 255.255.255.0
      • Gateway: 192.168.0.1
    • ARP Reply: Reply to this port ARP request
    • ICMP Echo (PING) Reply: Reply to this port PING request
  • VLAN:
    • Enabled: OFF
    • This Port VLAN:
      • No., TPID (hex), Priority, VID (dec)
      • 1, 8100, 0, 1
      • 2
      • 3
      • 4
      • 5
      • 6
      • 7
      • 8
      • 9
      • 10
    • CFI: Reset
  • Protocols:
    • Protocol Filter:
      • IGMP: OFF
      • BGP4: OFF
  • Mapping: Framed
  • MII Properties:
    • Auto Negotiation:
      • On: ON
      • Timeout Enable: OFF
    • Loopback: OFF
    • Flow Control Receive:
      • Multicast Pause Address: OFF
      • Directed Address: OFF
  • Maximum Frame Size: 1518
  • Preamble: OFF
  • Ownership: Owner
  • Mode: Normal
  • MAC Address: 00-00-00-00-00-04
  • IPv4:
    • This Port:
      • IPv4 Address: 192.168.1.2
      • Netmask: 255.255.255.0
      • Gateway: 192.168.1.1
    • ARP Reply: Reply to this port ARP request
    • ICMP Echo (PING) Reply: Reply to this port PING request
  • VLAN:
    • Enabled: OFF
    • This Port VLAN:
      • No., TPID (hex), Priority, VID (dec)
      • 1, 8100, 0, 1
      • 2
      • 3
      • 4
      • 5
      • 6
      • 7
      • 8
      • 9
      • 10
    • CFI: Reset
  • Protocols:
    • Protocol Filter:
      • IGMP: OFF
      • BGP4: OFF
  • Mapping: Framed
  • MII Properties:
    • Auto Negotiation: ON
      • Capabilities To Be Advertised:
        • 10M bps Half Duplex: ON
        • 10M bps Full Duplex: ON
        • 100M bps Half Duplex: ON
        • 100M bps Full Duplex: ON
        • 1000M bps Half Duplex: ON
        • 1000M bps Full Duplex: ON
      • Timing: Auto
      • Auto MDI/MDI-X: ON
    • Loopback (1000M Full only): OFF
    • Flow Control Receive (Full Duplex only):
      • Multicast Pause Address: OFF
      • Directed Address: OFF
  • Maximum Frame Size: 1518
  • Preamble: OFF

Throughput

Top

Test Settings

[Test Method]
Traffic Distribution: One to One
Traffic Orientation: Unidirectional
[Ports]
VLAN Tag A: OFF
VLAN Tag B: OFF
VLAN ID: 1
[Test Frame]
Frame Sizes to Use: RFC2544 Frame Sizes: 64, 128, 256, 512, 1024, 1280, 1518 byte
Protocol: IP
Version of IP: IPv4
Device Type: Store and Forward
[Learning Frame (for Ethernet Modules)]
Learning Mode: Once
Retries: 1
[Throughput]
Duration: 60s
Number of Trials: 1
Burst Size: 1
Initial Rate: 100.00%
Minimum Rate: 0.10%
Maximum Rate: 100.00%
Resolution: 0.50%
Loss Tolerance: 0.0000%

Results (Table)

Byte/s
Frame Size Average 1
64 20,000,000 20,000,000
128 40,000,000 40,000,000
256 76,521,728 76,521,728
512 120,300,544 120,300,544
1,024 122,604,544 122,604,544
1,280 122,461,440 122,461,440
1,518 122,757,624 122,757,624

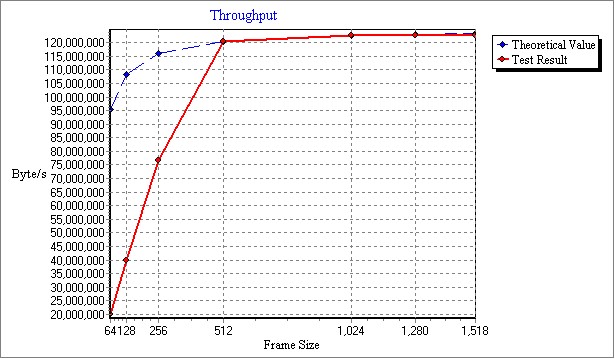

Results (Chart)


Latency

Top

Test Settings

[Test Method]
Traffic Distribution: One to One
Traffic Orientation: Unidirectional
[Ports]
VLAN Tag A: OFF
VLAN Tag B: OFF
VLAN ID: 1
[Test Frame]
Frame Sizes to Use: RFC2544 Frame Sizes: 64, 128, 256, 512, 1024, 1280, 1518 byte
Protocol: IP
Version of IP: IPv4
Device Type: Store and Forward
[Learning Frame (for Ethernet Modules)]
Learning Mode: Once
Retries: 1
[Latency]
Duration: 120s
Number of Trials: 1
Burst Size: 1
Frame Rate: Result of Throughput Rate

Results (Table)

Latency (s)
Frame Size Average 1
64 0.000048782 0.000048782
128 0.000041834 0.000041834
256 0.000092682 0.000092682
512 0.001264366 0.001264366
1,024 0.001123298 0.001123298
1,280 0.000419166 0.000419166
1,518 0.000307098 0.000307098

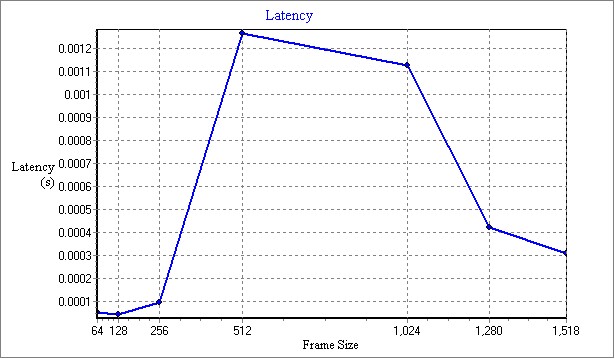

Results (Chart)


Frame Loss Rate

Top

Test Settings

[Test Method]
Traffic Distribution: One to One
Traffic Orientation: Unidirectional
[Ports]
VLAN Tag A: OFF
VLAN Tag B: OFF
VLAN ID: 1
[Test Frame]
Frame Sizes to Use: RFC2544 Frame Sizes: 64, 128, 256, 512, 1024, 1280, 1518 byte
Protocol: IP
Version of IP: IPv4
Device Type: Store and Forward
[Learning Frame (for Ethernet Modules)]
Learning Mode: Once
Retries: 1
[Frame Loss Rate]
Duration: 60s
Number of Trials: 1
Burst Size: 1
Initial Rate: 100%
Step Rate: 10%

Results (Table)

Frame Loss Rate (%)
Frame Size Frame Rate Average 1
64 100.00% 48.37 48.37
64 90.00% 42.70 42.70
64 80.00% 35.46 35.46
64 70.00% 26.08 26.08
64 60.00% 14.00 14.00
64 50.00% 0.06 0.06
64 40.00% 0.01 0.01
64 30.00% 0.01 0.01
64 20.00% 0.00 0.00
64 10.00% - -
128 100.00% 9.47 9.47
128 90.00% 0.12 0.12
128 80.00% 0.17 0.17
128 70.00% 0.01 0.01
128 60.00% 0.01 0.01
128 50.00% 0.01 0.01
128 40.00% 0.00 0.00
128 30.00% 0.00 0.00
128 20.00% - -
128 10.00% - -
256 100.00% 0.01 0.01
256 90.00% 0.01 0.01
256 80.00% 0.00 0.00
256 70.00% 0.00 0.00
256 60.00% 0.00 0.00
256 50.00% - -
256 40.00% - -
256 30.00% - -
256 20.00% - -
256 10.00% - -
512 100.00% 0.00 0.00
512 90.00% - -
512 80.00% - -
512 70.00% - -
512 60.00% - -
512 50.00% - -
512 40.00% - -
512 30.00% - -
512 20.00% - -
512 10.00% - -
1,024 100.00% 0.00 0.00
1,024 90.00% - -
1,024 80.00% - -
1,024 70.00% - -
1,024 60.00% - -
1,024 50.00% - -
1,024 40.00% - -
1,024 30.00% - -
1,024 20.00% - -
1,024 10.00% - -
1,280 100.00% 0.04 0.04
1,280 90.00% 0.00 0.00
1,280 80.00% - -
1,280 70.00% - -
1,280 60.00% - -
1,280 50.00% - -
1,280 40.00% - -
1,280 30.00% - -
1,280 20.00% - -
1,280 10.00% - -
1,518 100.00% 0.05 0.05
1,518 90.00% 0.00 0.00
1,518 80.00% - -
1,518 70.00% - -
1,518 60.00% - -
1,518 50.00% - -
1,518 40.00% - -
1,518 30.00% - -
1,518 20.00% - -
1,518 10.00% - -

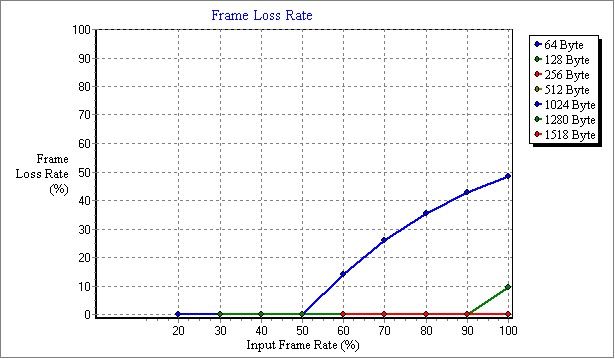

Results (Chart)
